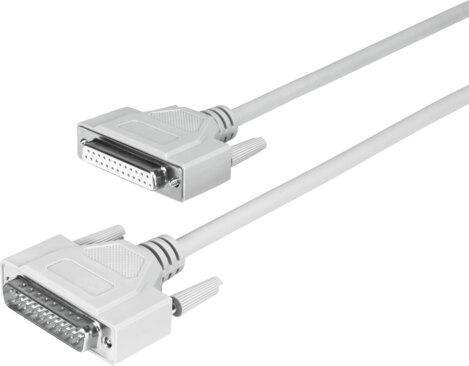

Reference imageConfirm configuration by manufacturer part number.
Festo
8001376
Connecting cable NEBC-S1G25-K-5.0-N-S1G25
The Festo 8001376 is an industrial component featuring a 25-pin Sub-D straight plug on the field device side with a square design, straight cable outlet, and 2x 4-40 UNC screw mounting, featuring all 25 pins occupied. Connection 2 on the control side utilizes a 25-pin Sub-D straight socket with a square design, straight cable outlet, 2x 4-40 UNC screw mounting, and all 25 pins occupied, designed without a label holder. This component operates at a nominal DC voltage of 24 V with a current rating of 1 A at 40° C. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8001376
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8001376.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- Without label holder
- Electrical connection
- 25-pin | Straight plug | Sub-D/Sub-D
- Electrical connection 1, function
- Field device side
- Electrical connection 1, design
- Square
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- Sub-D
- Electrical connection 1, number of pins/wires
- 25
- Electrical connection 1, occupied pins/wires
- 25
- Electrical connection 1, type of mounting
- 2x 4-40 UNC screw
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Square
- Electrical connection 2, connection type
- Socket
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- Sub-D
- Electrical connection 2, number of pins/wires
- 25
- Electrical connection 2, occupied pins/wires
- 25
- Electrical connection 2, type of mounting
- 2x 4-40 UNC screw
- Nominal operating voltage DC
- 24 V
- Current rating at 40° C
- 1 A
- Shield
- Yes
- Cable length
- 5 m
- Cable characteristic
- Standard
- Cable diameter
- 7 mm
- Degree of protection
- IP40
- Note on degree of protection
- In mounted state
- Ambient temperature
- 0 °C...70 °C
- CE marking (see declaration of conformity)
- As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK RoHS instructions
- LABS (PWIS) conformity
- VDMA24364 Zone III
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8001376. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
