Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8001415

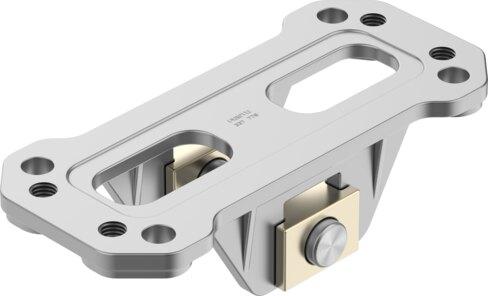

Moment compensator DARD-L1-80-S
The Festo size 80 industrial component, part number 8001415, features a radial deviation of plus or minus 2 mm and a long-term maximum permissible load in the direction of force of plus or minus 7000 N. Constructed with high-alloy steel bolts and clevis, brass sliding pieces, and spring steel fuse material, this RoHS compliant unit achieves a CRC corrosion resistance class of 1 and VDMA24364-B1/B2-L LABS conformity. It operates within an ambient temperature range of -20 °C to 120 °C. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8001415
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8001415.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- 80
- Radial deviation +/-
- 2 mm
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -20 °C...120 °C
- Long-term maximum permissible load in direction of force +/-
- 7000 N
- Note on materials
- RoHS compliant
- Bolt material
- High-alloy steel
- Clevis material
- High-alloy steel
- Sliding piece material
- Brass
- Fuse material
- Spring steel
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8001415. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
