8001459

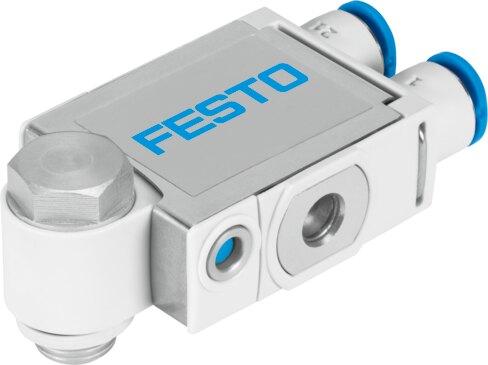

Name: Festo 8001459 One-way flow control valve VFOF-LE-BAH-G18-Q6
Brand: Festo

One-way flow control valve VFOF-LE-BAH-G18-Q6

The Festo part number 8001459 is an industrial component featuring an exhaust air flow control non-return function with a piloted check valve and non-detenting manual exhaust function. It includes a QS-6 pneumatic connection 1, a G1/8 pneumatic connection 2, a QS-6 pilot air port 21, and an internal hex adjusting element for screw-in mounting in any position. The unit provides a standard nominal flow rate of 240 l/min in the flow control direction, a range of 120 l/min to 220 l/min in the non-return direction, and operates within a pressure range of 0.02 MPa to 1 MPa and an ambient temperature of -10 °C to 60 °C. Constructed with a PBT housing and ATEX certification for Zone 2 and Zone 22, it utilizes pneumatic actuation for the piloted non-return function and manual actuation. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8001459
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8001459.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: Exhaust air ow control non-return function
Selection of additional function: Piloted check valve
Pneumatic connection 1: QS-6
Pneumatic connection 2: G1/8
Actuation type: Manual
Pilot air port 21: QS-6
Adjusting element: Internal hex
Type of mounting: Screw-in
Standard nominal ow rate in ow control direction: 240 l/min
Standard nominal ow rate in non-return direction: 120 l/min...220 l/min
Operating pressure: 0.02 MPa...1 MPa | 0.2 bar...10 bar | 2.9 psi...145 psi
Pilot pressure MPa: 0.2 MPa...1 MPa
Pilot pressure: 2 bar...10 bar
Pilot pressure psi: 29 psi...145 psi
Ambient temperature: -10 °C...60 °C
Housing material: PBT
Explosion prevention and protection: Zone 2 (ATEX) | Zone 22 (ATEX)
Mounting position: Any
Actuation type, piloted non-return function: Pneumatic
Manual exhaust function: Non-detenting
Rotatability: 360 deg/continuous swiveling not permissible
Operating pressure for entire temperature range: 0.02 MPa...1 MPa | 0.2 bar...10 bar | 2.9 psi...145 psi
Standard ow rate in ow control direction 6 -> 0 bar: 420 l/min
Standard ow rate actuated in non-return direction 0.6->0 MPa (6->0: 400 l/min...460 l/min
Standard ow rate in non-return direction at 6 -> 0 bar unactuated: 400 l/min...460 l/min
Standard nominal ow rate in non-return direction actuated: 150 l/min...230 l/min
Standard nominal ow rate in non-return direction, unactuated: 120 l/min...220 l/min
