Festo
8001469

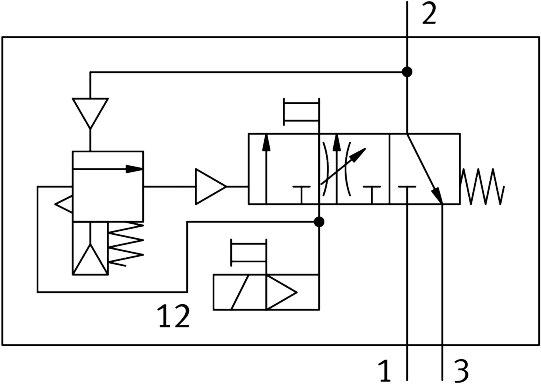

Soft start/quick exhaust valve MS6-SV-1/2-C-10V24-S
The Festo 8001469 is a size 6 industrial component from the MS series featuring a 62 mm width dimension, a piston gate valve structural design with positive overlap, and a soft sealing principle. This electrically actuated, piloted 3/2-way closed monostable valve delivers a pressurization function along with safety functions for exhausting and the prevention of unexpected start-up, achieving category 1, performance level c for both functions per DIN EN ISO 13849-1 and DIN EN ISO 13849-2 standards. Operating at pressures from 0.3 MPa to 1 MPa (3 bar to 10 bar), the unit provides a C value of 23.2 l/sbar, a b-value of 0.4, mechanical spring reset, and non-detenting manual override at the pilot control air solenoid valve alongside detenting, self-resetting manual override at the soft start/quick exhaust valve, requiring a switching frequency of at least once a month for forced dynamization. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8001469
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8001469.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Series
- MS
- Size
- 6
- Width dimension
- 62 mm
- Safety function
- Exhausting | Prevention of unexpected start-up (pressurization)
- Performance Level (PL)
- Exhaust/category 1, performance level c | Avoidance of unexpected start-up (pressurization)/category 1, | performance level c
- Note on forced dynamization
- Switching frequency at least once a month
- Structural design
- Piston gate valve
- Lap
- Positive overlap
- Actuation type
- Electrical
- Pilot air supply port
- Internal
- Sealing principle
- Soft
- Exhaust air function
- Cannot be throttled
- Conforms to standard
- DIN EN ISO 13849-1 | DIN EN ISO 13849-2
- Manual override
- At pilot control air solenoid valve: non-detenting, at soft start/quick | exhaust valve: detenting, self-resetting
- Reset method
- Mechanical spring
- Type of control
- Piloted
- Valve function
- 3/2-way, closed, monostable | Pressurization function
- Operating pressure
- 0.3 MPa...1 MPa | 3 bar...10 bar
- C value
- 23.2 l/sbar
- b-value
- 0.4
- Normal nominal ow rate (normalized to DIN 1343)
- 5700 l/min
- Standard ow rate exhaust 6-> 0 bar
- 7600 l/min
- Switching time off
- 65 ms
- On switching time
- 370 ms
- Duty cycle
- 100%
- Coil characteristics
- 24 V DC: 1.8 W
