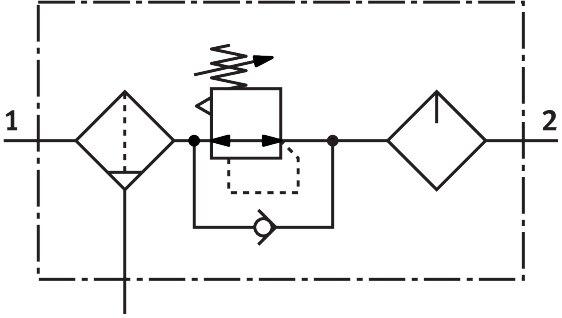

Reference imageConfirm configuration by manufacturer part number.
Festo
8002269
Service unit FRC-1-D-MAXI-MPA
The Festo 8002269 is a Maxi-size D-series industrial component featuring a filter regulator with a pressure gauge and a proportional standard oil mist lubricator, structured with a manual rotating condensate drain and an 80 cm³ max condensate volume metal bowl guard. It operates within a 1 bar to 16 bar operating pressure range, a 0.5 bar to 12 bar pressure regulation range, and achieves an 8500 l/min normal nominal flow rate for compressed air or inert gases at a 40 µm grade of filtration. The unit is designed for a vertical ±5° mounting position, features a rotary knob with detent actuator lock, and withstands moderate corrosion stress with a CRC 2 rating across a medium temperature range of -10 °C to 60 °C. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8002269
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8002269.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size
- Maxi
- Series
- D
- Actuator lock
- Rotary knob with detent
- Mounting position
- Vertical ±5°
- Condensate drain
- Manual, rotating
- Structural design
- Filter regulator with pressure gauge | Proportional standard oil mist lubricator
- Max. condensate volume
- 80 cm³
- Grade of ltration
- 40 µm
- Bowl guard
- Metal bowl guard
- Pressure gauge
- with pressure gauge
- Operating pressure
- 0.1 MPa...1.6 MPa | 1 bar...16 bar
- Pressure regulation range
- 0.5 bar...12 bar
- Max. pressure hysteresis
- 0.04 MPa | 0.4 bar | 5.8 psi
- Normal nominal ow rate (normalized to DIN 1343)
- 8500 l/min
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:9:-] | Inert gases
- Information on operating and pilot media
- Operation with oil lubrication possible (required for further use)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Air quality class at the output
- Compressed air as per ISO 8573-1:2010 [7:8:-] | Inert gases
- Temperature of medium
- -10 °C...60 °C
- Ambient temperature
- -10 °C...60 °C
- Product weight
- 2520 g
- Type of mounting
- In-line installation | With accessories
- Pneumatic connection 1
- G1
- Pneumatic connection 2
- G1
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8002269. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
