Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

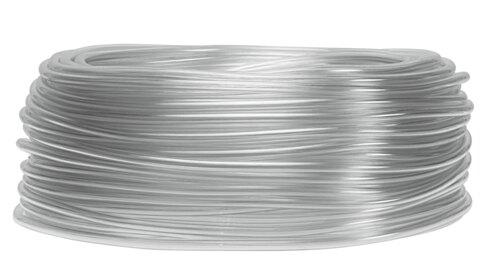

Reference imageConfirm configuration by manufacturer part number.
Festo
8003126
Plastic tubing PUN-H-1/4-NT-500-HA
This Festo industrial component, part number 8003126, is a nature-colored TPE-U ether-based pneumatic tubing featuring a 1/4 inch external diameter and a Shore hardness of D 52 +/-3. The tubing operates with compressed air as per ISO 8573-1:2010 [7:-:-] or liquid water, supporting a temperature-dependent operating pressure from -14.4 psi to 145 psi across an ambient temperature range of -31 °F to 145 °F. Suitable for energy chains and battery production with reduced Cu/Zn/Ni values (F1a), it incorporates a minimum bending radius of 0.046 feet and a bending radius relevant for flow rate of 0.085 feet. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8003126
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8003126.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- External-Ø inches
- 1/4
- Bending radius relevant for ow rate
- 0.085 Feet
- Min. bending radius
- 0.046 Feet
- Application note
- TPE-U, ether-based
- Tubing characteristics
- Suitable for energy chains
- Temperature-dependent operating pressure
- -14.4 psi...145 psi
- Information on operating pressure
- Water: temperature-dependent operating pressure, see diagram, max. | 0.3 MPa at 0 - 60 °C
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:-:-] | Water (liquid, ice-free)
- Material re test
- UL94 HB
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Suitability for the production of Li-ion batteries
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- Cleanroom suitability, measured according to ISO 14644-14
- Statically installed element, no meaningful evaluation possible | according to ISO 14644-1
- For use in the food industry
- See supplementary material information
- Ambient temperature
- -31 °F...145 °F
- Product weight by length
- 2.47 oz/ft
- Pneumatic connection
- For plug connection outside diameter 1/4"
- Color
- nature
- Shore hardness
- D 52 +/-3
- Note on materials
- RoHS compliant
- Material of pneumatic tubing
- TPE-U(PU)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8003126. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
