8003129

Name: Festo 8003129 Connecting cable NEBU-M8G3-R-10-LE3
Brand: Festo

Connecting cable NEBU-M8G3-R-10-LE3

The Festo 8003129 is an industrial component featuring an M8x1 A-coded straight socket on connection 1 and an open-end 3-wire cable on connection 2, supporting an operating voltage range of 0 V to 60 V AC/DC at a 3 A current rating. Conforming to EN 60947-5-2 and EN 61076-2-104 standards for wire colors and connection numbers, this 242 g assembly includes two label holders and is rated for ATEX Zone 2 and Zone 22 hazardous environments per the certificate. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8003129
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8003129.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Conforms to standard: Wire colors and connection numbers as per EN 60947-5-2 | EN 61076-2-104
Explosion prevention and protection: Observe the information on the certicate | Zone 2 (ATEX) | Zone 22 (ATEX)
Cable designation: With 2x label holders
Product weight: 242 g
Electrical connection 1, function: Field device end
Electrical connection 1, design: Round
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Straight

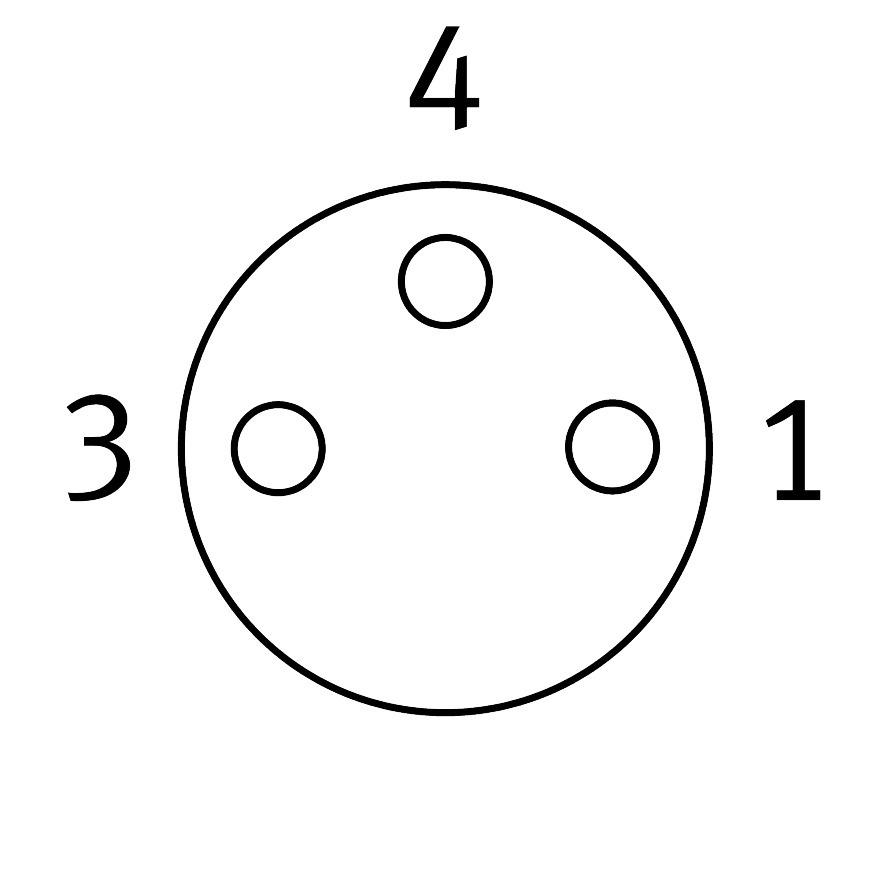

Electrical connection 1, connection technology: M8x1 A-coded as per EN 61076-2-104
Electrical connection 1, number of pins/wires: 3
Electrical connection 1, occupied pins/wires: 3
Electrical connection 1, type of mounting: Screw-type lock
Electrical connection 2, function: Control side
Electrical connection 2, connection type: Cable
Electrical connection 2, connection technology: Open end
Electrical connection 2, number of pins/wires: 3
Electrical connection 2, occupied pins/wires: 3
DC operating voltage range: 0 V...60 V
Operating voltage range AC: 0 V...60 V
Current rating at 40° C: 3 A
Surge resistance: 1.5 kV
Cable length: 10 m
Cable characteristic: Suitable for robot applications
Connector cable test conditions: Flexural strength: as per Festo standard | Test conditions on request | Torsionsfestigkeit: > 300 000 Zyklen, ±270°/0,1 m | Energy chain > 5 million cycles, bending radius 28 mm
Bending radius, xed cable installation: 12 mm

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8003129. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
