Name: Festo 8003134 Connecting cable NEBU-M12G5-K-7-LE4
Brand: Festo

Connecting cable NEBU-M12G5-K-7-LE4

The Festo 8003134 industrial component is a 197 g connecting part featuring an M12x1 A-coded straight socket with 5 pins (4 occupied) on the field device end and an open-ended 4-wire cable on the control side. It operates within a 0 V to 250 V AC/DC range at a 4 A current rating at 40° C and includes two label holders along with a screw-type lock mounting. Certified for ATEX Zone 2 and Zone 22 with compliance to EN 60947-5-2 and EN 61076-2-101 standards, the unit requires adherence to certificate instructions. Submit your exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8003134
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8003134.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Conforms to standard: Wire colors and connection numbers as per EN 60947-5-2 | EN 61076-2-101
Explosion prevention and protection: Observe the information on the certicate | Zone 2 (ATEX) | Zone 22 (ATEX)
Cable designation: With 2x label holders
Product weight: 197 g
Electrical connection 1, function: Field device end
Electrical connection 1, design: Round
Electrical connection 1, connection type: Socket
Electrical connection 1, cable outlet: Straight

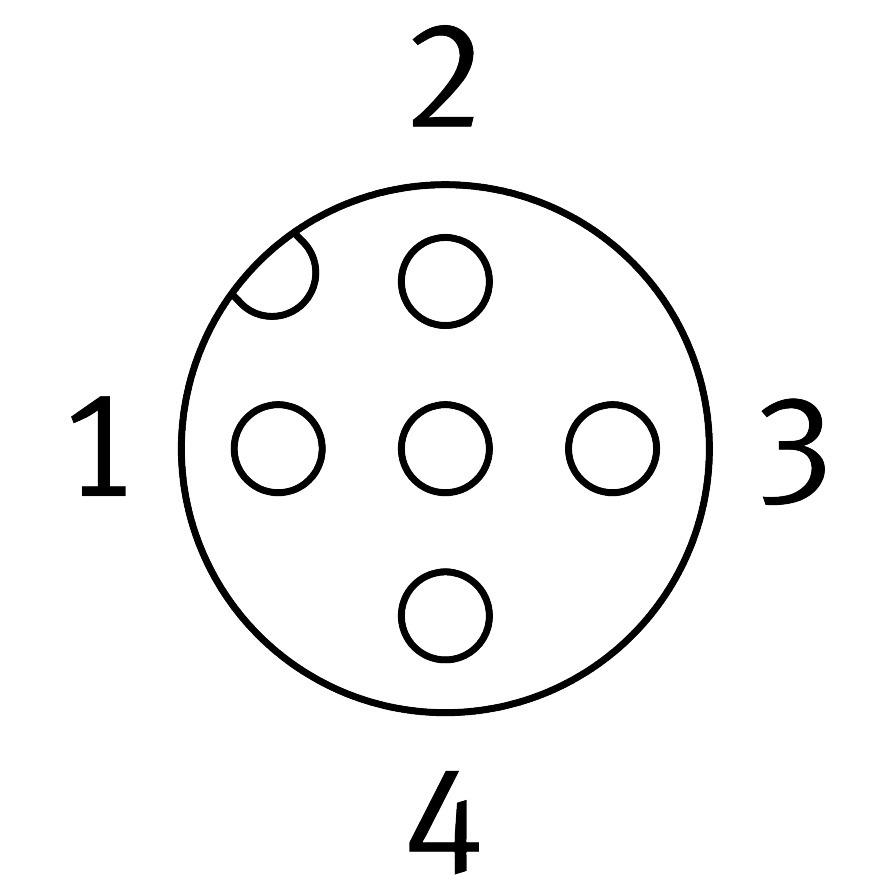

Electrical connection 1, connection technology: M12x1 A-coded as per EN 61076-2-101
Electrical connection 1, number of pins/wires: 5
Electrical connection 1, occupied pins/wires: 4
Electrical connection 1, type of mounting: Screw-type lock
Electrical connection 2, function: Control side
Electrical connection 2, connection type: Cable
Electrical connection 2, connection technology: Open end
Electrical connection 2, number of pins/wires: 4
Electrical connection 2, occupied pins/wires: 4
DC operating voltage range: 0 V...250 V
Operating voltage range AC: 0 V...250 V
Current rating at 40° C: 4 A
Surge resistance: 2.5 kV
Cable length: 7 m
Cable characteristic: Standard
Connector cable test conditions: Flexural strength: as per Festo standard | Test conditions on request | Energy chain > 5 million cycles, bending radius 75 mm
Bending radius, xed cable installation: 14 mm
Bending radius, exible cable installation: 46 mm
