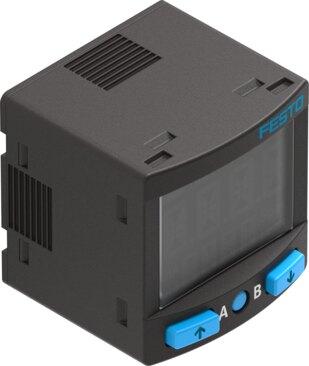

Reference imageConfirm configuration by manufacturer part number.
Festo
8003300
Pressure sensor SPAN-
The Festo part number 8003300 is a piezoresistive pressure sensor designed to measure relative pressure within a measuring range from -0.1 MPa (-1 bar, -14.5 psi) to 1.6 MPa (16 bar, 232 psi). This industrial component operates with compressed air conforming to ISO 8573-1:2010 [7:4:4] or inert gases across a medium and ambient temperature range of 0 °C to 50 °C, supporting lubricated operation. Featuring an accuracy of 1.5 %FS, a repetition accuracy of 0.3 %FS, switchable 2 x PNP or 2 x NPN outputs, and analog output options of 0 - 10 V, 4 - 20 mA, or 1 - 5 V, it carries RCM compliance, c UL us - Listed (OL), CE marking per EU EMC and RoHS directives, and UKCA marking for UK EMC and RoHS instructions. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8003300
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8003300.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Relative pressure
- Method of measurement
- Piezoresistive pressure sensor
- Pressure measuring range initial value
- -0.1 MPa | -1 bar | -14.5 psi
- Pressure measuring range end value
- 1.6 MPa | 16 bar | 232 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [7:4:4] | Inert gases
- Information on operating and pilot media
- Lubricated operation possible
- Temperature of medium
- 0 °C...50 °C
- Ambient temperature
- 0 °C...50 °C
- Accuracy in ± % FS
- 1.5 %FS
- Repetition accuracy in ± %FS
- 0.3 %FS
- Temperature co-efficient in ± %FS/K
- 0.05 %FS/K...0.1 %FS/K
- Switching output
- 2 x PNP or 2 x NPN switchable | PNP/NPN switchable
- Switching function
- Window comparator | Threshold value comparator | Auto difference monitoring
- Switching element function
- N/C contact/N/O contact, switchable
- Max. output current
- 80 mA...100 mA
- Analog output
- 0 - 10 V | 4 - 20 mA | 1 - 5 V
- Max. load resistance of current output
- 500 Ohm
- Min. load resistance of voltage output
- 20 kOhm
