Festo
8004665
Encoder cable NEBM-M12G8-E-7.5-N-S1G15
This Festo industrial component, part number 8004665, features a straight M12x1 A-coded 8-pin socket for field device connection and a straight 15-pin Sub-D plug with 8 occupied wires for the control side, complete with an integrated shield and no label holder. The part operates within an AC and DC voltage range of 0 V to 30 V, with a nominal operating voltage of 24 V for both current types. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8004665
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8004665.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Cable designation
- Without label holder
- Electrical connection 1, function
- Field device end
- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Socket
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 8
- Electrical connection 1, occupied pins/wires
- 8
- Electrical connection 2, function
- Control side
- Electrical connection 2, design
- Rectangular
- Electrical connection 2, connection type
- Plug
- Electrical connection 2, cable outlet
- Straight

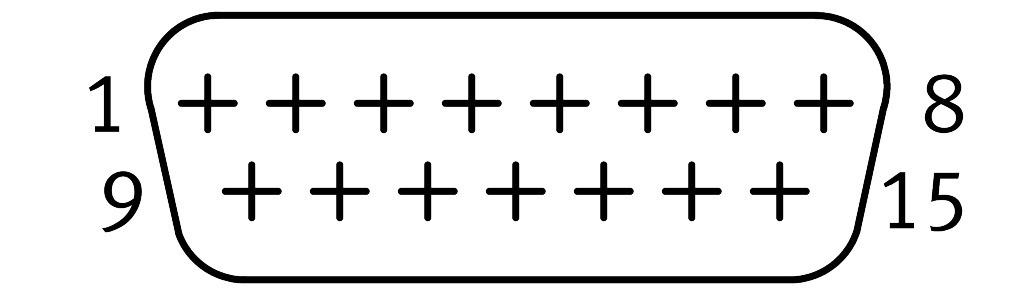

- Electrical connection 2, connection technology
- Sub-D
- Electrical connection 2, number of pins/wires
- 15
- Electrical connection 2, occupied pins/wires
- 8
- DC operating voltage range
- 0 V...30 V
- Nominal operating voltage DC
- 24 V
- Operating voltage range AC
- 0 V...30 V
- Nominal operating voltage AC
- 24 V
- Shield
- yes
- Cable length
- 7.5 m
- Cable characteristic
- Suitable for energy chains
- Bending radius, exible cable installation
- 68 mm
- Cable diameter
- 6.8 mm
- Cable design
- 4 x 2 x 0.14 mm²
- Nominal conductor cross section
- 0.14 mm²
- Degree of protection
- IP65
- Note on degree of protection
- IP30 for Sub-D plug | In mounted state
- Ambient temperature
- -40 °C...80 °C
- Ambient temperature with exible cable installation
- -5 °C...80 °C
- CE marking (see declaration of conformity)
- As per EU RoHS directive
