Festo
8004895

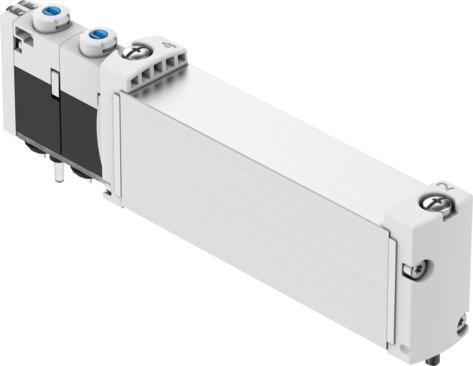

Air solenoid valve VUVG-B18-P53E-ZT-F-1T1L
The Festo 8004895 is an electrical 5/3 exhausted piston gate valve featuring an 18 mm valve size, a normal nominal flow rate of 850 l/min, and a piloted type of control with an external pilot air supply port. This c UL us-recognized component operates on 24V DC within an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and delivers IP65 and IP67 degrees of protection with a soft sealing principle, mechanical spring reset method, and adjustable exhaust air function. Additional features include flange pneumatic working ports, reversible flow direction, indeterminate overlap lap, detenting and non-detenting manual override, an LED signal status display, and any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8004895
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8004895.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3 exhausted
- Actuation type
- Electrical
- Valve size
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 850 l/min
- Pneumatic working port
- Flange
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | IP67
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Indeterminate overlap
- Signal status display
- LED
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Max. switching frequency
- 3 Hz
- Switching time off
- 68 ms
- On switching time
- 20 ms
- Changeover time
- 35 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1600 µs
- Max. negative test pulse on 1 signal
- 3000 µs
