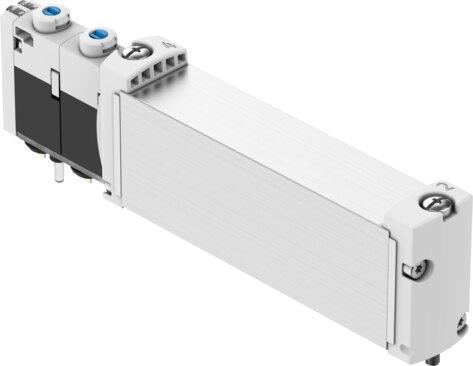

Reference imageConfirm configuration by manufacturer part number.
Festo
8004896
Air solenoid valve VUVG-B18-P53U-ZT-F-1T1L
The Festo 8004896 is a piloted 18 mm electrical industrial component featuring a 5/3-way pressurized valve function, piston gate valve structural design, and soft sealing principle with an indeterminate overlap lap. It delivers a normal nominal flow rate of 850 l/min, a reversible flow direction, an adjustable exhaust air function, and an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) via an external pilot air supply port and flange pneumatic working ports. Rated IP65 and IP67 with c UL us recognition, this 24V DC unit includes a mechanical spring reset method, detenting and non-detenting manual override, an LED signal status display, and supports any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8004896
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8004896.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/3-way, pressurized
- Actuation type
- Electrical
- Valve size
- 18 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 850 l/min
- Pneumatic working port
- Flange
- Operating voltage
- 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- Degree of protection
- IP65 | IP67
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- External
- Flow direction
- Reversible
- Lap
- Indeterminate overlap
- Signal status display
- LED
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- Max. switching frequency
- 3 Hz
- Switching time off
- 68 ms
- On switching time
- 20 ms
- Changeover time
- 35 ms
- Duty cycle
- 100%
- Max. positive test pulse with 0 signal
- 1600 µs
- Max. negative test pulse on 1 signal
- 3000 µs
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8004896. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
