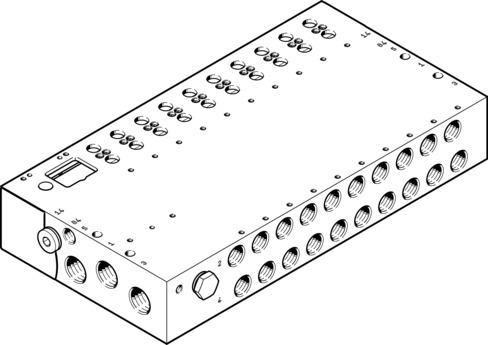

Name: Festo 8004909 Manifold rail VABM-L1-18G-G38-24-G
Brand: Festo

Manifold rail VABM-L1-18G-G38-24-G

The Festo 8004909 industrial component is built on a wrought aluminum alloy manifold rail featuring a width dimension of 19 mm, a product weight of 5461 g, and a maximum of 24 valve positions with any mounting position. This unit integrates G3/8 pneumatic connections 1, 3, and 5 alongside G1/8 pilot air ports 12/14 and pilot exhaust air ports 82/84, while meeting RoHS material compliance and VDMA24364-B1/B2-L LABS conformity. Designed with a CRC of 2 for moderate corrosion stress and a storage temperature range of -20 °C to 60 °C, it carries c UL us recognition. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8004909
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8004909.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width dimension: 19 mm
Mounting position: Any
Max. no. of valve positions: 24
Certication: c UL us - recognized (OL)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -20 °C...60 °C
Product weight: 5461 g
Pilot air port 12/14: G1/8
Pilot exhaust air port 82/84: G1/8
Pneumatic connection 1: G3/8
Pneumatic connection 3: G3/8
Pneumatic connection 5: G3/8
Note on materials: RoHS compliant
Manifold rail material: Wrought aluminum alloy

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8004909. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
