Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com
Reference imageConfirm configuration by manufacturer part number.
Festo
8004913

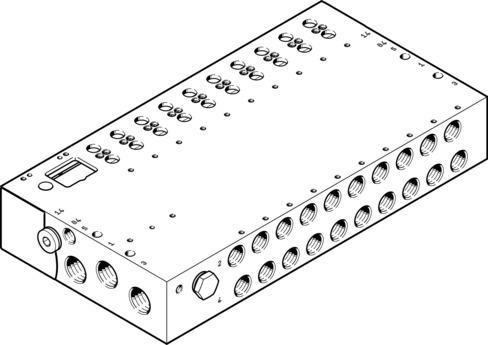

Manifold rail VABM-L1-18W-G38-4-G
Engineered with a wrought aluminum alloy manifold rail and a 19 mm width dimension, this Festo industrial component supports up to 4 valve positions in any mounting position. The unit features G3/8 pneumatic connections 1, 3, and 5, G1/4 connections 2 and 4, plus G1/8 pilot air and exhaust ports 12/14 and 82/84. Meeting RoHS material requirements and a CRC 2 moderate corrosion stress rating, the 1369 g assembly conforms to VDMA24364-B1/B2-L LABS standards and holds c UL us recognition. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8004913
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8004913.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width dimension
- 19 mm
- Mounting position
- Any
- Max. no. of valve positions
- 4
- Certication
- c UL us - recognized (OL)
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Storage temperature
- -20 °C...60 °C
- Product weight
- 1369 g
- Pilot air port 12/14
- G1/8
- Pilot exhaust air port 82/84
- G1/8
- Pneumatic connection 1
- G3/8
- Pneumatic connection 2
- G1/4
- Pneumatic connection 3
- G3/8
- Pneumatic connection 4
- G1/4
- Pneumatic connection 5
- G3/8
- Note on materials
- RoHS compliant
- Manifold rail material
- Wrought aluminum alloy
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8004913. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
