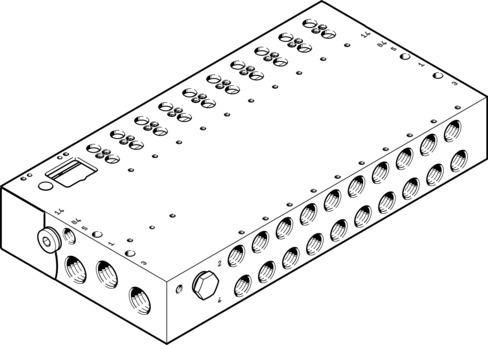

Name: Festo 8004926 Manifold rail VABM-L1-18W-G38-24-M-G
Brand: Festo

Manifold rail VABM-L1-18W-G38-24-M-G

Engineered with a wrought aluminum alloy manifold rail and a width dimension of 19 mm, this Festo industrial component supports a maximum of 24 valve positions and any mounting position. The unit weighs 4909 g, features a corrosion resistance class of 2 for moderate corrosion stress, and complies with VDMA24364-B1/B2-L LABS conformity alongside RoHS material standards. It includes G3/8 pneumatic connections 1, 3, and 5, G1/4 pneumatic connections 2 and 4, G1/8 pilot air ports 12/14, and G1/8 pilot exhaust air ports 82/84, while holding c UL us recognition. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8004926
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8004926.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Width dimension: 19 mm
Mounting position: Any
Max. no. of valve positions: 24
Certication: c UL us - recognized (OL)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Storage temperature: -20 °C...60 °C
Product weight: 4909 g
Pilot air port 12/14: G1/8
Pilot exhaust air port 82/84: G1/8
Pneumatic connection 1: G3/8
Pneumatic connection 2: G1/4
Pneumatic connection 3: G3/8
Pneumatic connection 4: G1/4
Pneumatic connection 5: G3/8
Note on materials: RoHS compliant
Manifold rail material: Wrought aluminum alloy

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8004926. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
