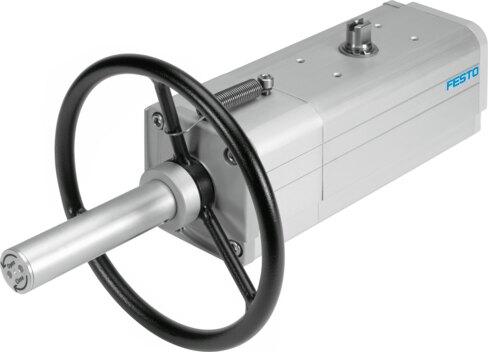

Name: Festo 8005008 Quarter turn actuator DAPS-0960-090-R-F1012-MW
Brand: Festo

Quarter turn actuator DAPS-0960-090-R-F1012-MW

The Festo 8005008 industrial component is a double-acting valve actuator featuring a size of 0960, a 92-degree swivel angle, and a kinematic yoke system structural design with no cushioning. It operates within a pressure range of 1 bar to 8.4 bar, a nominal operating pressure of 5.6 bar, and closes to the right in any mounting position. The unit includes an F10 or F12 flange hole pattern, a 38.5 mm shaft connection depth, ISO 5211 valve connectivity, and VDI/VDE 3845 NAMUR compliance without position sensing. Certified by TÜV Nord (certificate 212170801) for SIL 2 high and low demand modes, it carries ATEX and UKCA markings for use in gas zones 2G, zone 1, zone 2, zone 21, and zone 22. Submit the exact part number, quantity, and application requirements to receive a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8005008
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8005008.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 0960
Flange hole pattern: F10 | F12
Swivel angle: 92 deg
Depth shaft connection: 38.5 mm
Standard connection for valve: ISO 5211
Cushioning: No cushioning
Mounting position: Any
Mode of operation: Double-acting
Structural design: Kinematic yoke system
Position sensing: None
Closing direction: Closes to the right
Valve connection conforms to standard: VDI/VDE 3845 (NAMUR)
Safety integrity level (SIL): Up to SIL 2 high demand mode | Up to SIL 2 low demand mode
Operating pressure: 0.1 MPa...0.84 MPa | 1 bar...8.4 bar
Nominal operating pressure: 0.56 MPa | 5.6 bar
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Certicate issuing authority: German Technical Control Board North (TÜV Nord) 212170801
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T6...T3 Gb X
Type of (ignition) protection for dust: Ex h IIIC T85°C...T200°C Db X
Explosive ambient temperature: -20°C <= Ta <= +60°C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
