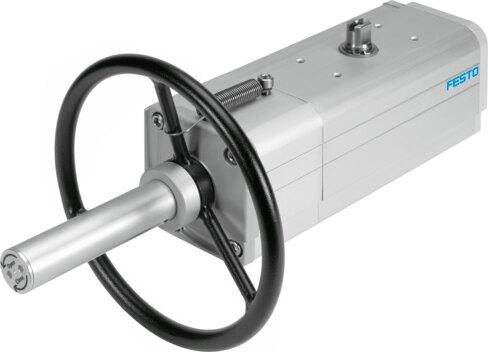

Name: Festo 8005018 Quarter turn actuator DAPS-0480-090-R-F1012-MW-T6
Brand: Festo

Quarter turn actuator DAPS-0480-090-R-F1012-MW-T6

The Festo 8005018 is a double-acting industrial component utilizing a kinematic yoke system with a 0480 valve actuator size and a 92-degree swivel angle. Operating within a pressure range of 3 bar to 8.4 bar and a nominal operating pressure of 5.6 bar, this unit features an F10 and F12 flange hole pattern, a 29.5 mm shaft connection depth, and ISO 5211 valve connection conforming to VDI/VDE 3845 (NAMUR) standards. Certified by TÜV Nord under certificate 212170801, the hardware provides ATEX and UKCA compliance for explosive atmospheres in zones 1, 2, 21, and 22, while supporting functional safety up to SIL 2 in both high and low demand modes. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8005018
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8005018.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 0480
Flange hole pattern: F10 | F12
Swivel angle: 92 deg
Depth shaft connection: 29.5 mm
Standard connection for valve: ISO 5211
Cushioning: No cushioning
Mounting position: Any
Mode of operation: Double-acting
Structural design: Kinematic yoke system
Position sensing: None
Closing direction: Closes to the right
Valve connection conforms to standard: VDI/VDE 3845 (NAMUR)
Safety integrity level (SIL): Up to SIL 2 high demand mode | Up to SIL 2 low demand mode
Operating pressure: 0.3 MPa...0.84 MPa | 3 bar...8.4 bar
Nominal operating pressure: 0.56 MPa | 5.6 bar
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Certicate issuing authority: German Technical Control Board North (TÜV Nord) 212170801
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T6...T3 Gb X
Type of (ignition) protection for dust: Ex h IIIC T85°C...T200°C Db X
Explosive ambient temperature: -50°C <= Ta <= +60°C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
