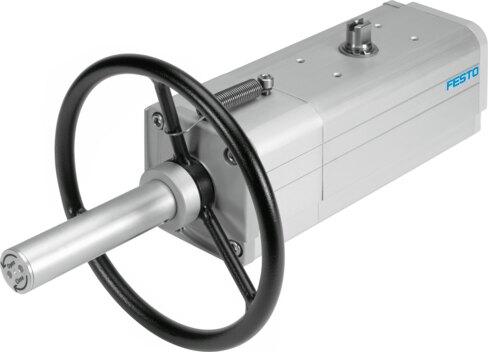

Name: Festo 8005021 Quarter turn actuator DAPS-0960-090-R-F14-MW-T6
Brand: Festo

Quarter turn actuator DAPS-0960-090-R-F14-MW-T6

Engineered by Festo, part number 8005021 is a double-acting industrial component utilizing a kinematic yoke system with a size 0960 valve actuator, an F14 flange hole pattern, and a 92-degree swivel angle that closes to the right. The unit features an ISO 5211 standard connection for the valve, a VDI/VDE 3845 NAMUR valve connection, a 38.5 mm shaft connection depth, no cushioning, and an any mounting position, operating within a pressure range of 0.3 MPa to 0.84 MPa (3 bar to 8.4 bar) at a nominal operating pressure of 0.56 MPa (5.6 bar). Certified by TÜV Nord (certificate 212170801) for ATEX Category II 2G gas environments across Zones 1, 2, 21, and 22, this hardware provides SIL 2 safety integrity levels for both high and low demand modes while carrying CE and UKCA explosion protection markings. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8005021
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8005021.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 0960
Flange hole pattern: F14
Swivel angle: 92 deg
Depth shaft connection: 38.5 mm
Standard connection for valve: ISO 5211
Cushioning: No cushioning
Mounting position: Any
Mode of operation: Double-acting
Structural design: Kinematic yoke system
Position sensing: None
Closing direction: Closes to the right
Valve connection conforms to standard: VDI/VDE 3845 (NAMUR)
Safety integrity level (SIL): Up to SIL 2 high demand mode | Up to SIL 2 low demand mode
Operating pressure: 0.3 MPa...0.84 MPa | 3 bar...8.4 bar
Nominal operating pressure: 0.56 MPa | 5.6 bar
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Certicate issuing authority: German Technical Control Board North (TÜV Nord) 212170801
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T6...T3 Gb X
Type of (ignition) protection for dust: Ex h IIIC T85°C...T200°C Db X
Explosive ambient temperature: -50°C <= Ta <= +60°C
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Information on operating and pilot media: Operation with oil lubrication possible (required for further use)
Corrosion resistance class (CRC): 2 - Moderate corrosion stress

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8005021. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
