Festo
8005028

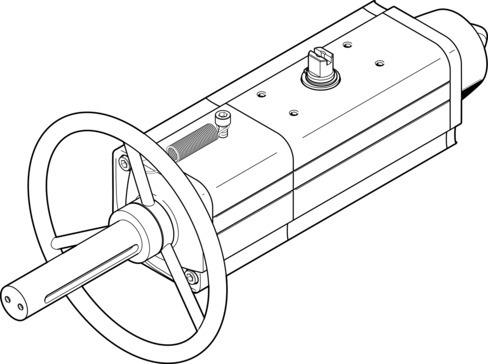

Quarter turn actuator DAPS-0053-090-RS3-F0507-MW
This Festo industrial component features a size 0053 valve actuator with a kinematic yoke system and a single-acting mode of operation that closes to the right. Operating within a pressure range of 0.42 MPa to 0.84 MPa and a nominal operating pressure of 0.56 MPa, the unit incorporates an ISO 5211 flange hole pattern of F05 or F07, a 92-degree swivel angle, and a 19.3 mm depth shaft connection. Certified for use in ATEX Zone 1, Zone 2, Zone 21, and Zone 22 environments, the assembly provides safety integrity level SIL 2 compliance for both high and low demand modes. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8005028
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8005028.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 0053
- Flange hole pattern
- F05 | F07
- Swivel angle
- 92 deg
- Depth shaft connection
- 19.3 mm
- Information on the end-position adjusting range
- One end position optionally adjustable
- Standard connection for valve
- ISO 5211
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
- Single-acting
- Structural design
- Kinematic yoke system
- Position sensing
- None
- Closing direction
- Closes to the right
- Valve connection conforms to standard
- VDI/VDE 3845 (NAMUR)
- Safety integrity level (SIL)
- Up to SIL 2 high demand mode | Up to SIL 2 low demand mode
- Connection pressure for spring force
- 0.42 MPa | 4.2 bar
- Operating pressure
- 0.42 MPa...0.84 MPa | 4.2 bar...8.4 bar
- Nominal operating pressure
- 0.56 MPa | 5.6 bar
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Certicate issuing authority
- German Technical Control Board North (TÜV Nord) 212170801
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T6...T3 Gb X
- Type of (ignition) protection for dust
- Ex h IIIC T85°C...T200°C Db X
- Explosive ambient temperature
- -20°C <= Ta <= +60°C
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8005028. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
