Festo
8005029

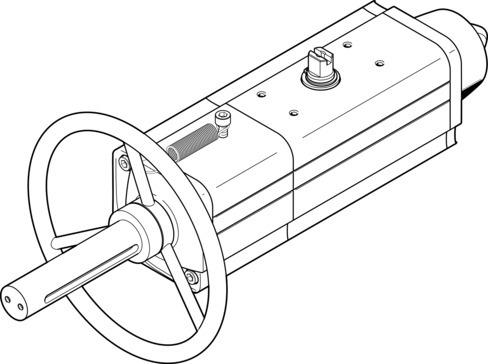

Quarter turn actuator DAPS-0053-090-RS4-F0507-MW
The Festo 8005029 industrial component is a single-acting valve actuator featuring a 0053 size and a kinematic yoke system structural design with a 92-degree swivel angle and a 19.3 mm depth shaft connection. It incorporates an ISO 5211 standard connection for valves, a VDI/VDE 3845 NAMUR-conforming valve connection, F05 and F07 flange hole patterns, and offers one optionally adjustable end position with no cushioning. Operating at a nominal operating pressure and spring force connection pressure of 5.6 bar across an operating pressure range of 5.6 bar to 8.4 bar, the unit includes ATEX and UKCA markings for explosion protection in Zones 1, 2, 21, and 22, along with SIL 2 safety integrity levels for both high and low demand modes. Submit the exact part number, quantity, and application requirements to receive a formal quotation for this hardware.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8005029
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8005029.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 0053
- Flange hole pattern
- F05 | F07
- Swivel angle
- 92 deg
- Depth shaft connection
- 19.3 mm
- Information on the end-position adjusting range
- One end position optionally adjustable
- Standard connection for valve
- ISO 5211
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
- Single-acting
- Structural design
- Kinematic yoke system
- Position sensing
- None
- Closing direction
- Closes to the right
- Valve connection conforms to standard
- VDI/VDE 3845 (NAMUR)
- Safety integrity level (SIL)
- Up to SIL 2 high demand mode | Up to SIL 2 low demand mode
- Connection pressure for spring force
- 0.56 MPa | 5.6 bar
- Operating pressure
- 0.56 MPa...0.84 MPa | 5.6 bar...8.4 bar
- Nominal operating pressure
- 0.56 MPa | 5.6 bar
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Certicate issuing authority
- German Technical Control Board North (TÜV Nord) 212170801
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T6...T3 Gb X
- Type of (ignition) protection for dust
- Ex h IIIC T85°C...T200°C Db X
- Explosive ambient temperature
- -20°C <= Ta <= +60°C
