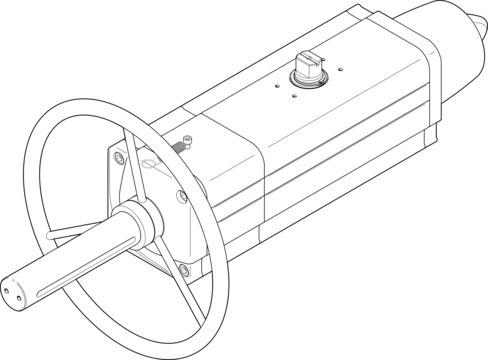

Name: Festo 8005039 Quarter turn actuator DAPS-0180-090-RS2-F0710-MW
Brand: Festo

Quarter turn actuator DAPS-0180-090-RS2-F0710-MW

The Festo part number 8005039 is a single-acting industrial component featuring a kinematic yoke system with a size 0180 valve actuator and a 92-degree swivel angle. It incorporates an ISO 5211 flange hole pattern of F07 or F10, a 24.3 mm shaft connection depth, a VDI/VDE 3845 NAMUR standard valve connection, and an optionally adjustable single end position with no cushioning. Operating at a nominal pressure of 0.56 MPa (5.6 bar) and a spring force connection pressure of 0.35 MPa (3.5 bar) within an operating pressure range of 0.35 MPa to 0.84 MPa, it operates in any mounting position without position sensing and closes to the right. This component complies with ATEX and UKCA directives for explosion protection in Zones 1, 2, 21, and 22, and achieves Safety Integrity Level (SIL) 2 for both high and low demand modes. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8005039
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8005039.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 0180
Flange hole pattern: F07 | F10
Swivel angle: 92 deg
Depth shaft connection: 24.3 mm
Information on the end-position adjusting range: One end position optionally adjustable
Standard connection for valve: ISO 5211
Cushioning: No cushioning
Mounting position: Any
Mode of operation: Single-acting
Structural design: Kinematic yoke system
Position sensing: None
Closing direction: Closes to the right
Valve connection conforms to standard: VDI/VDE 3845 (NAMUR)
Safety integrity level (SIL): Up to SIL 2 high demand mode | Up to SIL 2 low demand mode
Connection pressure for spring force: 0.35 MPa | 3.5 bar
Operating pressure: 0.35 MPa...0.84 MPa | 3.5 bar...8.4 bar
Nominal operating pressure: 0.56 MPa | 5.6 bar
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Certicate issuing authority: German Technical Control Board North (TÜV Nord) 212170801
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T6...T3 Gb X
Type of (ignition) protection for dust: Ex h IIIC T85°C...T200°C Db X
Explosive ambient temperature: -20°C <= Ta <= +60°C
