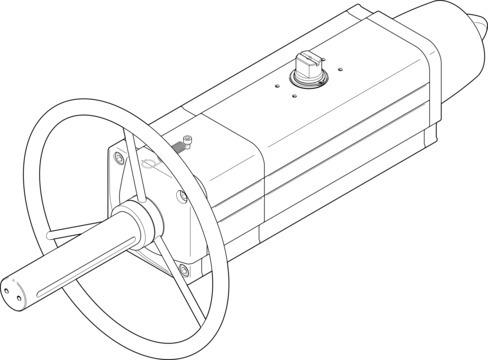

Name: Festo 8005043 Quarter turn actuator DAPS-0240-090-RS2-F1012-MW
Brand: Festo

Quarter turn actuator DAPS-0240-090-RS2-F1012-MW

The Festo part number 8005043 is a single-acting industrial component featuring a 0240 valve actuator size, a kinematic yoke system structural design, and an F10 or F12 flange hole pattern. It operates within a pressure range of 0.35 MPa to 0.84 MPa, a nominal operating pressure of 0.56 MPa, and a swivel angle of 92 degrees with an optionally adjustable single end position. This unit includes ISO 5211 valve connection, VDI/VDE 3845 NAMUR standard compliance, ATEX and UKCA explosion protection certifications for Zones 1, 2, 21, and 22, and SIL 2 safety integrity levels for both high and low demand modes. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8005043
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8005043.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 0240
Flange hole pattern: F10 | F12
Swivel angle: 92 deg
Depth shaft connection: 29.5 mm
Information on the end-position adjusting range: One end position optionally adjustable
Standard connection for valve: ISO 5211
Cushioning: No cushioning
Mounting position: Any
Mode of operation: Single-acting
Structural design: Kinematic yoke system
Position sensing: None
Closing direction: Closes to the right
Valve connection conforms to standard: VDI/VDE 3845 (NAMUR)
Safety integrity level (SIL): Up to SIL 2 high demand mode | Up to SIL 2 low demand mode
Connection pressure for spring force: 0.35 MPa | 3.5 bar
Operating pressure: 0.35 MPa...0.84 MPa | 3.5 bar...8.4 bar
Nominal operating pressure: 0.56 MPa | 5.6 bar
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Certicate issuing authority: German Technical Control Board North (TÜV Nord) 212170801
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T6...T3 Gb X
Type of (ignition) protection for dust: Ex h IIIC T85°C...T200°C Db X
Explosive ambient temperature: -20°C <= Ta <= +60°C

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8005043. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
