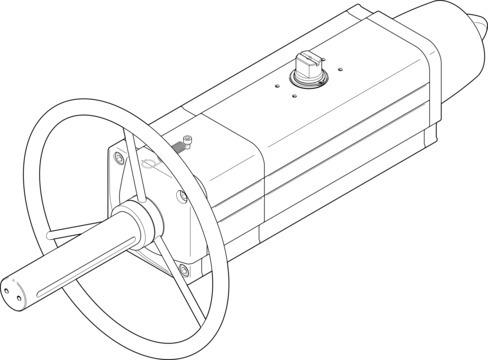

Reference imageConfirm configuration by manufacturer part number.
Festo
8005049
Quarter turn actuator DAPS-0360-090-RS4-F1012-MW
The Festo 8005049 industrial component is a single-acting valve actuator featuring a size of 0360, a 92-degree swivel angle, and a kinematic yoke system with no cushioning. It operates at a nominal pressure of 0.56 MPa, supports operating pressures ranging from 0.56 MPa to 0.84 MPa, and closes to the right with one optionally adjustable end position. Certified for ATEX Zone 1, Zone 2, Zone 21, and Zone 22 hazardous areas, this unit includes an F10 and F12 flange hole pattern, ISO 5211 valve connection, VDI/VDE 3845 NAMUR standard compliance, and functional safety up to SIL 2 in both high and low demand modes. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8005049
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8005049.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Size of valve actuator
- 0360
- Flange hole pattern
- F10 | F12
- Swivel angle
- 92 deg
- Depth shaft connection
- 29.5 mm
- Information on the end-position adjusting range
- One end position optionally adjustable
- Standard connection for valve
- ISO 5211
- Cushioning
- No cushioning
- Mounting position
- Any
- Mode of operation
- Single-acting
- Structural design
- Kinematic yoke system
- Position sensing
- None
- Closing direction
- Closes to the right
- Valve connection conforms to standard
- VDI/VDE 3845 (NAMUR)
- Safety integrity level (SIL)
- Up to SIL 2 high demand mode | Up to SIL 2 low demand mode
- Connection pressure for spring force
- 0.56 MPa | 5.6 bar
- Operating pressure
- 0.56 MPa...0.84 MPa | 5.6 bar...8.4 bar
- Nominal operating pressure
- 0.56 MPa | 5.6 bar
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- UKCA marking (see declaration of conformity)
- acc. to UK EX instructions
- Explosion prevention and protection
- Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
- Certicate issuing authority
- German Technical Control Board North (TÜV Nord) 212170801
- ATEX category gas
- II 2G
- ATEX category for dust
- II 2D
- Type of ignition protection for gas
- Ex h IIC T6...T3 Gb X
- Type of (ignition) protection for dust
- Ex h IIIC T85°C...T200°C Db X
- Explosive ambient temperature
- -20°C <= Ta <= +60°C
