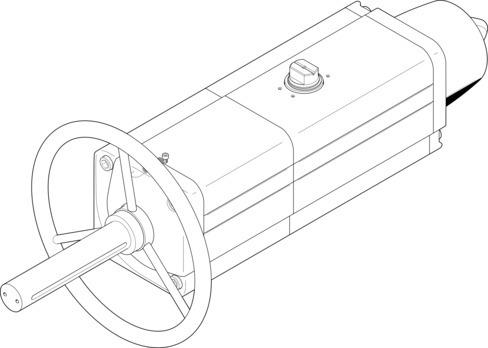

Name: Festo 8005059 Quarter turn actuator DAPS-0720-090-RS1-F14-MW
Brand: Festo

Quarter turn actuator DAPS-0720-090-RS1-F14-MW

This Festo industrial component, part number 8005059, is a single-acting valve actuator featuring a size 0720 kinematic yoke system with an F14 flange hole pattern and an ISO 5211 standard valve connection that conforms to VDI/VDE 3845 (NAMUR). It operates with a 92-degree swivel angle, a 38.5 mm shaft connection depth, no cushioning, and any mounting position, offering an operating pressure range of 0.28 MPa to 0.84 MPa (2.8 bar to 8.4 bar) at a nominal operating pressure of 0.56 MPa (5.6 bar). Certified for ATEX Zone 1, Zone 2, Zone 21, and Zone 22 with CE and UKCA markings, the unit provides SIL 2 safety integrity levels in both high and low demand modes, featuring a spring force connection pressure of 0.28 MPa (2.8 bar), right-closing direction, and one optionally adjustable end position without position sensing. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8005059
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8005059.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size of valve actuator: 0720
Flange hole pattern: F14
Swivel angle: 92 deg
Depth shaft connection: 38.5 mm
Information on the end-position adjusting range: One end position optionally adjustable
Standard connection for valve: ISO 5211
Cushioning: No cushioning
Mounting position: Any
Mode of operation: Single-acting
Structural design: Kinematic yoke system
Position sensing: None
Closing direction: Closes to the right
Valve connection conforms to standard: VDI/VDE 3845 (NAMUR)
Safety integrity level (SIL): Up to SIL 2 high demand mode | Up to SIL 2 low demand mode
Connection pressure for spring force: 0.28 MPa | 2.8 bar
Operating pressure: 0.28 MPa...0.84 MPa | 2.8 bar...8.4 bar
Nominal operating pressure: 0.56 MPa | 5.6 bar
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Explosion prevention and protection: Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Certicate issuing authority: German Technical Control Board North (TÜV Nord) 212170801
ATEX category gas: II 2G
ATEX category for dust: II 2D
Type of ignition protection for gas: Ex h IIC T6...T3 Gb X
Type of (ignition) protection for dust: Ex h IIIC T85°C...T200°C Db X
Explosive ambient temperature: -20°C <= Ta <= +60°C
