Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

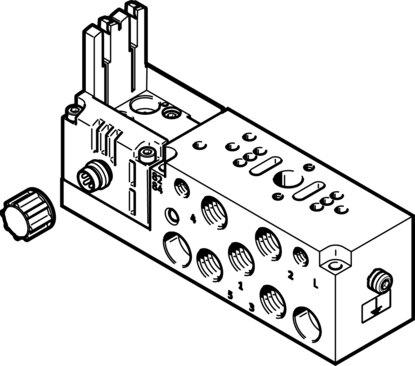

Reference imageConfirm configuration by manufacturer part number.
Festo
8005151
Sub-base VMPA2-IC-AP-1-EX1E
Manufactured by Festo, part number 8005151 is an industrial component measuring 30.5 mm in width, 107.3 mm in length, with a width dimension of 21 mm and a product weight of 233 g. It operates at a pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar) and features an M8 plug electrical connection alongside sub-base mounting with a through-hole. The unit carries CE, UKCA, and EPL Gb (BR) certifications for Zone 1 and Zone 2 hazardous areas, supporting explosive ambient temperatures from -5°C to +50°C. Submit your required part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8005151
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8005151.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 30.5 mm
- Length
- 107.3 mm
- Width dimension
- 21 mm
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
- Explosion protection certication outside the EU
- EPL Gb (BR)
- Explosion prevention and protection
- Zone 1 (BR) | Zone 2 (ATEX)
- ATEX category gas
- II 3G
- Type of ignition protection for gas
- Ex ec IIC T4 Gc X
- Explosive ambient temperature
- -5°C <= Ta <= +50°C
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 233 g
- Electrical connection
- M8 | Plug
- Sub-base mounting type
- With through-hole
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- G1/8
- Pneumatic connection 3
- G1/8
- Pneumatic connection 4
- G1/8
- Pneumatic connection 5
- G1/8
- Note on materials
- RoHS compliant
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8005151. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
