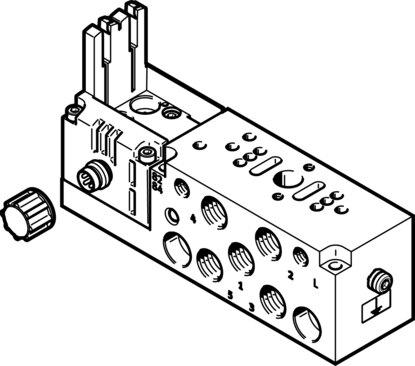

Reference imageConfirm configuration by manufacturer part number.
Festo
8005152
Sub-base VMPA2-IC-AP-S-1-EX1E
The Festo part number 8005152 is an industrial component featuring a width of 30.5 mm, a length of 107.3 mm, a width dimension of 21 mm, and a product weight of 233 g. This unit operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and requires a pilot pressure of 0.3 MPa to 0.8 MPa (3 bar to 8 bar). Certified for Zone 2 (ATEX) and Zone 1 (BR) explosion prevention and protection, it carries KC-EMV characters, an EPL Gb (BR) certification, an ATEX gas category of II 3G, and an Ex ec IIC T4 Gc X ignition protection type for an explosive ambient temperature of -5°C to +50°C. It features an M8 plug electrical connection, sub-base mounting with a through-hole, a corrosion resistance class of CRC 0, LABS conformity under VDMA24364-B1/B2-L, and CE, UKCA, and RoHS compliances. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8005152
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8005152.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Width
- 30.5 mm
- Length
- 107.3 mm
- Width dimension
- 21 mm
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Pilot pressure MPa
- 0.3 MPa...0.8 MPa
- Pilot pressure
- 3 bar...8 bar
- KC characters
- KC-EMV
- CE marking (see declaration of conformity)
- As per EU EMC directive | as per EU explosion protection directive (ATEX) | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | acc. to UK EX instructions | To UK RoHS instructions
- Explosion protection certication outside the EU
- EPL Gb (BR)
- Explosion prevention and protection
- Zone 1 (BR) | Zone 2 (ATEX)
- ATEX category gas
- II 3G
- Type of ignition protection for gas
- Ex ec IIC T4 Gc X
- Explosive ambient temperature
- -5°C <= Ta <= +50°C
- Corrosion resistance class (CRC)
- 0 - No corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B1/B2-L
- Ambient temperature
- -5 °C...50 °C
- Product weight
- 233 g
- Electrical connection
- M8 | Plug
- Sub-base mounting type
- With through-hole
- Pilot air port 12/14
- M5
- Pilot exhaust air port 82/84
- M5
- Pneumatic connection 1
- G1/8
- Pneumatic connection 2
- G1/8
- Pneumatic connection 3
- G1/8
- Pneumatic connection 4
- G1/8
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8005152. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
