Festo
8005311
Distributor NEDY-L2R1-V1-M8G3-N-M12G4
The Festo 8005311 is an industrial Y-distributor without a cable, featuring a 2 to 1 distributor type built to EN 61076-2-101 and EN 61076-2-104 norms with a product weight of 20 g. Control-side electrical connection 1 utilizes a straight, 4-pin, 4-occupied-wire M12x1 A-coded round plug with a rotatable screw-type lock featuring an AF13 hexagon and vertical knurling, while field-device-side electrical connection 2 provides two straight M8x1 A-coded 3-pin ports. Mounting is achieved via a through-hole for an M2 screw with accessories and without a label holder. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8005311
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8005311.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Based on norm
- EN 61076-2-101 | EN 61076-2-104
- Structural design
- Y-distributor without cable
- Distributor type
- 2 to 1
- Cable designation
- Without label holder
- Type of mounting
- With through-hole for M2 screw | With accessories
- Product weight
- 20 g
- Electrical connection 1, function
- Control side

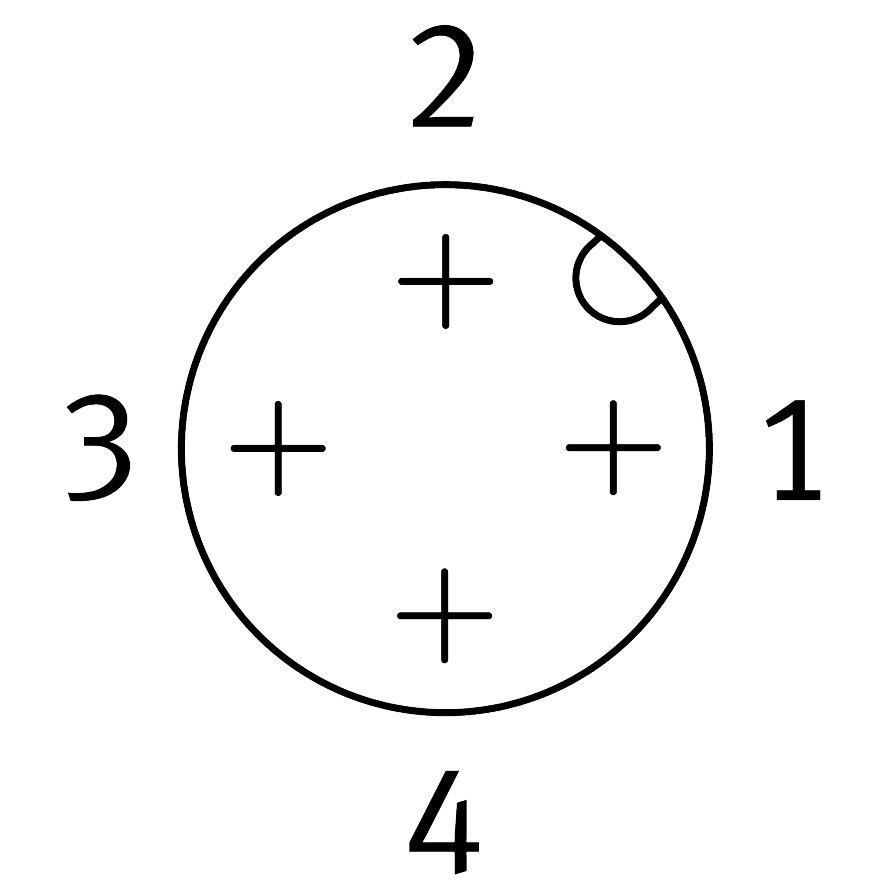

- Electrical connection 1, design
- Round
- Electrical connection 1, connection type
- Plug
- Electrical connection 1, cable outlet
- Straight
- Electrical connection 1, connection technology
- M12x1 A-coded as per EN 61076-2-101
- Electrical connection 1, number of pins/wires
- 4
- Electrical connection 1, occupied pins/wires
- 4
- Electrical connection 1, type of mounting
- Screw-type lock with hexagon AF13 and vertical knurling | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
- Electrical connection 2, function
- Field device side
- Electrical connection 2, design
- Round
- Electrical connection 2, connection type
- 2x port
- Electrical connection 2, cable outlet
- Straight
- Electrical connection 2, connection technology
- M8x1 A-coded as per EN 61076-2-104
- Electrical connection 2, number of pins/wires
- 3
- Electrical connection 2, occupied pins/wires
- 3
- Electrical connection 2, type of mounting
- Screw-type lock with hexagon AF 9 and longitudinal knurl | Rotatable | Compatible with rotatable/non-rotatable screw-type lock
- DC operating voltage range
- 0 V...30 V
- Operating voltage range AC
- 0 V...30 V
- Current rating at 40° C
- 3 A
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8005311. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
