Festo
8022014

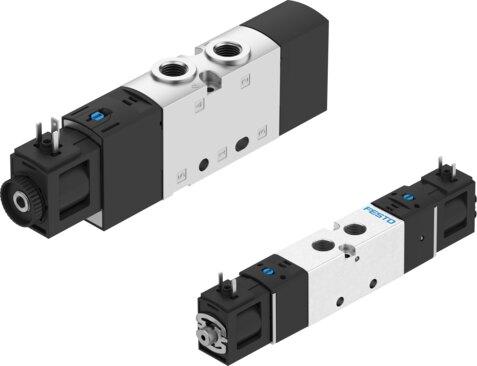

Air solenoid valve VUVS-25
The Festo 8022014 is an electrically actuated industrial component featuring a 26.5 mm valve size and a normal nominal flow rate ranging from 1000 l/min to 1300 l/min. It supports multiple valve functions including 2x3/2, 3/2-way, 5/2-way, and 5/3-way configurations, with pneumatic working ports available in G1/4, 1/4 NPT, and various QS push-in fittings. Operating pressures span from -0.9 bar to 10 bar, with operating voltages configurable across AC and DC options or via a separately ordered solenoid coil. Certified by c UL us and carrying relevant CE markings, this unit utilizes piston gate valve or plate seat structural designs with mechanical or pneumatic spring reset methods. Submit the exact part number, quantity, and application requirements to request a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8022014
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8022014.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable | 2x3/2 open monostable | 2x3/2, open/closed, monostable | 3/2-way, closed, monostable | 3/2-way, monostable, open | 5/2-way, bistable | 5/2-way, monostable | 5/3-way, pressurized | 5/3 exhausted | 5/3-way, closed
- Actuation type
- Electrical
- Valve size
- 26.5 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1000 l/min...1300 l/min
- Pneumatic working port
- G1/4 | 1/4 NPT | QS-6 | QS-8 | QS-10 | QS-1/4 | QS-5/16 | QS-3/8
- Operating voltage
- 110V AC | 120V AC | 12V DC | 230V AC | 240V AC | 24V AC | 24V DC | Via solenoid coil, to be ordered separately
- Operating pressure
- -0.9 bar...10 bar
- Structural design
- Piston gate valve | Plate seat
- Reset method
- Mechanical spring | Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX) | As per EU low voltage directive | As per EU RoHS directive
