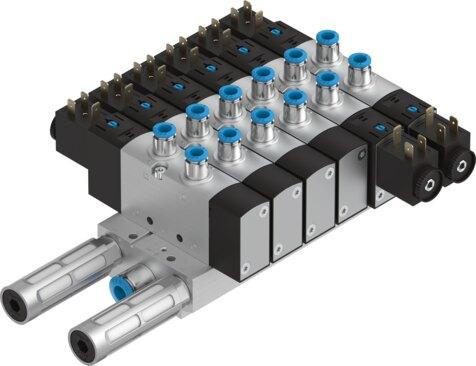

Name: Festo 8022016 Valve manifold assembly VTUS-25
Brand: Festo

Valve manifold assembly VTUS-25

The Festo 8022016 is an industrial component featuring individual electrical connection actuation within a 27.5 mm width dimension, operating on compressed air according to ISO 8573-1:2010 [7:4:4]. This unit functions across an operating pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and maintains an ambient temperature tolerance of -10 °C to 50 °C with IP65 and IP67 protection ratings when utilizing a plug socket. It carries ATEX and UKEX certifications for Zone 2 gas and Zone 22 dust environments, along with c UL us recognition and ISO 14644-1 Class 6 cleanroom suitability. Submit the exact part number, quantity, and application requirements to request a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8022016
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8022016.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Electrical actuation: Individual connection
Electrical I/O system: No
Width dimension: 27.5 mm
Operating medium: Compressed air as per ISO 8573-1:2010 [7:4:4]
Ambient temperature: -10 °C...50 °C
Storage temperature: -20 °C...60 °C
Degree of protection: IP65 | IP67 | With plug socket | As per IEC 60529
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Operating pressure for valve manifold with internal pilot air supply: 1.5 bar...10 bar
LABS (PWIS) conformity: VDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14: Class 6 according to ISO 14644-1
CE marking (see declaration of conformity): as per EU explosion protection directive (ATEX)
UKCA marking (see declaration of conformity): acc. to UK EX instructions
Certication: c UL us - recognized (OL)
Explosion prevention and protection: Zone 2 (ATEX) | Zone 2 (UKEX) | Zone 22 (ATEX) | Zone 22 (UKEX)
ATEX category gas: II 3G
ATEX category for dust: II 3D
Explosion protection certication outside the EU: EPL Dc (GB) | EPL Gc (GB)
Type of ignition protection for gas: Ex ec IIC T5 Gc X
Type of (ignition) protection for dust: Ex tc IIIC T95°C Dc X
Explosive ambient temperature: -10°C <= Ta <= +50°C
Note on materials: RoHS compliant
Valve manifold design: Fixed grid
Max. no. of valve positions: 16
Max. no. of pressure zones: 9

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8022016. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
