Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

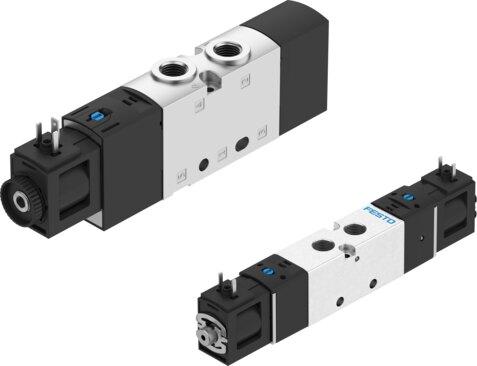

Reference imageConfirm configuration by manufacturer part number.
Festo
8022017
Air solenoid valve VUVS-30
The Festo part number 8022017 is an electrical industrial component featuring a 31 mm valve size and a normal nominal flow rate ranging from 1500 l/min to 2400 l/min. It supports multiple valve functions including 2x3/2, 3/2-way, and 5-way configurations, operating across pressures from -0.09 MPa to 1 MPa with pneumatic working ports such as G3/8, NPT, and QS series connections. This unit includes c UL us recognition, ATEX CE marking, and EPL classifications, operating on voltages spanning from 12V DC to 230V AC with piston gate or plate seat structural designs and mechanical or pneumatic spring reset methods. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8022017
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8022017.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable | 2x3/2 open monostable | 2x3/2, open/closed, monostable | 3/2-way, closed, monostable | 3/2-way, monostable, open | 5/2-way, bistable | 5/2-way, monostable | 5/3-way, pressurized | 5/3 exhausted | 5/3-way, closed
- Actuation type
- Electrical
- Valve size
- 31 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1500 l/min...2400 l/min
- Pneumatic working port
- G3/8 | 3/8 NPT | QS-8 | QS-10 | QS-12 | QS-5/16 | QS-3/8 | QS-1/2
- Operating voltage
- 110V AC | 120V AC | 12V DC | 230V AC | 240V AC | 24V AC | 24V DC
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve | Plate seat
- Reset method
- Mechanical spring | Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Maritime classication
- See certicate
- CE marking (see declaration of conformity)
- as per EU explosion protection directive (ATEX)
- Explosion protection certication outside the EU
- EPL Dc (GB) | EPL Gc (GB)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8022017. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
