Festo
8022018

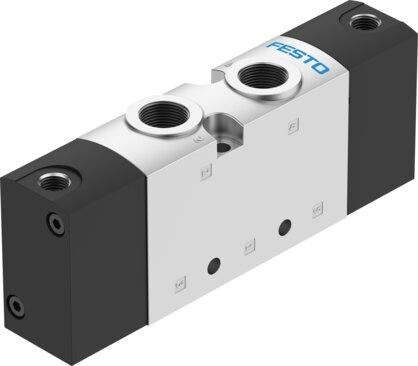

Pneumatic valve VUWS-30
Engineered by Festo with part number 8022018, this 31 mm pneumatic industrial component features a piston gate valve and plate seat structural design with soft sealing and an adjustable exhaust air function. It operates within a pressure range of -0.09 MPa to 1 MPa (-0.9 bar to 10 bar) and delivers a normal nominal flow rate between 1500 l/min and 2400 l/min utilizing direct control, pneumatic actuation, and mechanical or pneumatic spring reset. The unit holds c UL us recognition and ATEX certifications for Zones 1, 2, 21, and 22, supporting multiple valve functions, working ports, and any mounting position without manual override. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8022018
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8022018.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 2x3/2 closed, monostable | 2x3/2 open monostable | 2x3/2, open/closed, monostable | 3/2-way, closed, monostable | 3/2-way, monostable, open | 5/2-way, bistable | 5/2-way, monostable | 5/3-way, pressurized | 5/3 exhausted | 5/3-way, closed
- Actuation type
- Pneumatic
- Valve size
- 31 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 1500 l/min...2400 l/min
- Pneumatic working port
- G3/8 | 3/8 NPT | QS-6 | QS-8 | QS-10 | QS-1/4 | QS-5/16 | QS-3/8
- Operating pressure
- -0.09 MPa...1 MPa | -0.9 bar...10 bar
- Structural design
- Piston gate valve | Plate seat
- Reset method
- Mechanical spring | Pneumatic spring
- Certication
- c UL us - recognized (OL)
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- None
- Type of control
- directly
- Explosion prevention and protection
- Observe the information on the certicate | Zone 1 (ATEX) | Zone 2 (ATEX) | Zone 21 (ATEX) | Zone 22 (ATEX)
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8022018. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
