Festo
8022171

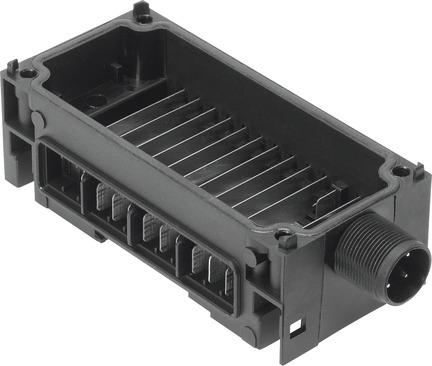

Interlinking block CPX-GE-EV-V-VL
The Festo industrial component, part number 8022171, is a tie rod mounted unit featuring a reinforced PA housing with a product weight of 125 g. This RoHS-compliant part includes a 4-pin M18 electrical connection supporting a max power supply of 8 A to provide additional power for pneumatic valves. It possesses a low corrosion stress CRC rating of 1 and VDMA24364-B2-L LABS conformity. Submit the exact part number, quantity, and application requirements to receive a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8022171
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8022171.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Type of mounting
- Tie rod
- Product weight
- 125 g
- Corrosion resistance class (CRC)
- 1 - Low corrosion stress
- LABS (PWIS) conformity
- VDMA24364-B2-L
- Note on materials
- RoHS-compliant
- Housing material
- PA-reinforced
- Electrical connection
- 4-pin | M18
- Max. power supply
- 8 A
- Power supply
- Additional supply for pneumatic valves
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8022171. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
