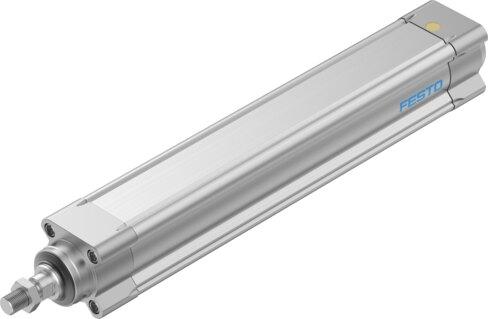

Name: Festo 8022574 Electric cylinder ESBF-BS-40-100-5P
Brand: Festo

Electric cylinder ESBF-BS-40-100-5P

The Festo part number 8022574 is an electric cylinder with a ball screw, featuring a structural design based on the ISO 15552 norm, a size of 40, and a working stroke and stroke of 100 mm. This component incorporates an M12x1.25 external thread piston rod end, a 16 mm screw diameter, a 5 mm/U spindle pitch, a plain bearing-guide for torsion protection, and accommodates either stepper or servo motors. Operational parameters include a maximum speed of 0.42 m/s, a maximum rotational speed of 4,800 rpm, a maximum acceleration of 5 m/s², a repetition accuracy of ±0.01 mm, a reversing backlash of 30 µm, a maximum piston rod angle of rotation of ±0.2 degrees, and position sensing via a proximity switch for any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8022574
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8022574.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Working stroke: 100 mm
Size: 40
Stroke: 100 mm
Piston rod thread: M12x1.25
Reversing backlash: 30 µm
Screw diameter: 16 mm
Spindle pitch: 5 mm/U
Max. angle of rotation of the piston rod +/-: 0.2 deg
Based on norm: ISO 15552
Mounting position: Any
Piston rod end: External thread
Motor type: Stepper motor | Servo motor
Position sensing: Via proximity switch
Structural design: Electric cylinder with ball screw
Spindle type: Ball screw
Protection against torsion/guide: With plain bearing-guide
Max. acceleration: 5 m/s²
Max. rotational speed: 4800 rpm
Max. speed: 0.42 m/s
Repetition accuracy: ±0.01 mm
Duty cycle: 100%
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Storage temperature: -20 °C...60 °C
For use in the food industry: See supplementary material information
Relative air humidity: 0 - 95%
Degree of protection: IP40
Ambient temperature: 0 °C...60 °C
Max. driving torque: 3 Nm
Max. radial force on actuator shaft: 130 N
Max. feed force Fx: 3000 N
