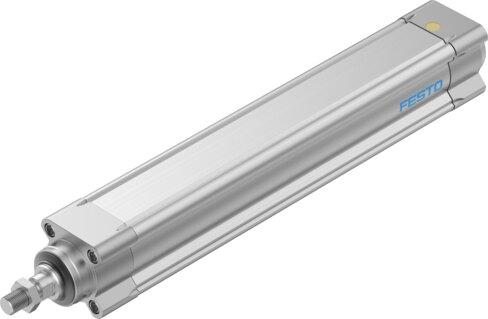

Reference imageConfirm configuration by manufacturer part number.
Festo
8022575
Electric cylinder ESBF-BS-40-300-5P
The Festo 8022575 is an electric cylinder with a ball screw based on the ISO 15552 norm, featuring a size 40 construction and a working stroke of 300 mm. Driven by a stepper or servo motor with a maximum rotational speed of 4800 rpm and a spindle pitch of 5 mm/U, this unit provides a maximum speed of 0.42 m/s, a maximum acceleration of 5 m/s², and a repetition accuracy of ±0.01 mm. It incorporates an external M12x1.25 piston rod thread with a 16 mm screw diameter, a plain bearing-guide for torsion protection, and position sensing via proximity switch for any mounting position. Submit the exact part number, quantity, and application requirements to receive a formal quotation.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8022575
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8022575.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 300 mm
- Size
- 40
- Stroke
- 300 mm
- Piston rod thread
- M12x1.25
- Reversing backlash
- 30 µm
- Screw diameter
- 16 mm
- Spindle pitch
- 5 mm/U
- Max. angle of rotation of the piston rod +/-
- 0.2 deg
- Based on norm
- ISO 15552
- Mounting position
- Any
- Piston rod end
- External thread
- Motor type
- Stepper motor | Servo motor
- Position sensing
- Via proximity switch
- Structural design
- Electric cylinder with ball screw
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Max. acceleration
- 5 m/s²
- Max. rotational speed
- 4800 rpm
- Max. speed
- 0.42 m/s
- Repetition accuracy
- ±0.01 mm
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- For use in the food industry
- See supplementary material information
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Max. driving torque
- 3 Nm
- Max. radial force on actuator shaft
- 130 N
- Max. feed force Fx
- 3000 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8022575. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
