Festo
8022581

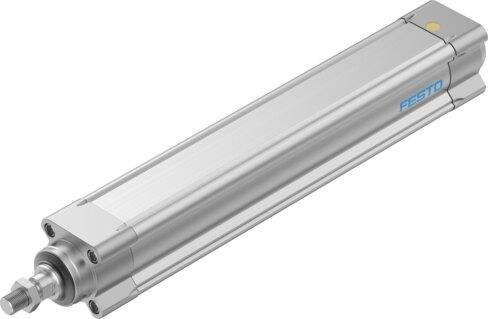

Electric cylinder ESBF-BS-40-100-16P
The Festo 8022581 is an electric cylinder with a ball screw based on the ISO 15552 norm, featuring a size 40 design and a 100 mm working stroke. Built with a plain bearing-guide for torsion protection, it achieves a max speed of 1.33 m/s, a max rotational speed of 4800 rpm, and a repetition accuracy of ±0.01 mm. This unit incorporates an M12x1.25 external thread piston rod, a 16 mm screw diameter with a 16 mm/U spindle pitch, and supports both stepper and servo motor types with position sensing via proximity switch. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8022581
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8022581.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 100 mm
- Size
- 40
- Stroke
- 100 mm
- Piston rod thread
- M12x1.25
- Reversing backlash
- 40 µm
- Screw diameter
- 16 mm
- Spindle pitch
- 16 mm/U
- Max. angle of rotation of the piston rod +/-
- 0.2 deg
- Based on norm
- ISO 15552
- Mounting position
- Any
- Piston rod end
- External thread
- Motor type
- Stepper motor | Servo motor
- Position sensing
- Via proximity switch
- Structural design
- Electric cylinder with ball screw
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Max. acceleration
- 25 m/s²
- Max. rotational speed
- 4800 rpm
- Max. speed
- 1.33 m/s
- Repetition accuracy
- ±0.01 mm
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- For use in the food industry
- See supplementary material information
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Max. driving torque
- 7.7 Nm
- Max. radial force on actuator shaft
- 130 N
- Max. feed force Fx
- 3000 N
