Festo
8022582

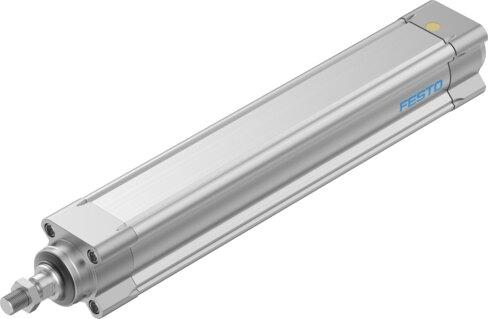

Electric cylinder ESBF-BS-40-200-16P
The Festo 8022582 is an electric cylinder with a ball screw based on the ISO 15552 norm, featuring a size 40 build and a 200 mm working stroke. Designed with a 16 mm screw diameter, a 16 mm/U spindle pitch, an M12x1.25 piston rod thread, and a plain bearing-guide for torsion protection, this unit accommodates either a stepper or servo motor. It achieves a maximum speed of 1.33 m/s, a maximum rotational speed of 4800 rpm, a maximum acceleration of 25 m/s², a repetition accuracy of ±0.01 mm, and a reversing backlash of 40 µm with a piston rod rotation angle of ±0.2 degrees. Position sensing is accomplished via proximity switch, and the component supports any mounting position with its external thread piston rod end. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8022582
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8022582.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 200 mm
- Size
- 40
- Stroke
- 200 mm
- Piston rod thread
- M12x1.25
- Reversing backlash
- 40 µm
- Screw diameter
- 16 mm
- Spindle pitch
- 16 mm/U
- Max. angle of rotation of the piston rod +/-
- 0.2 deg
- Based on norm
- ISO 15552
- Mounting position
- Any
- Piston rod end
- External thread
- Motor type
- Stepper motor | Servo motor
- Position sensing
- Via proximity switch
- Structural design
- Electric cylinder with ball screw
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Max. acceleration
- 25 m/s²
- Max. rotational speed
- 4800 rpm
- Max. speed
- 1.33 m/s
- Repetition accuracy
- ±0.01 mm
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- For use in the food industry
- See supplementary material information
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Max. driving torque
- 7.7 Nm
- Max. radial force on actuator shaft
- 130 N
- Max. feed force Fx
- 3000 N
