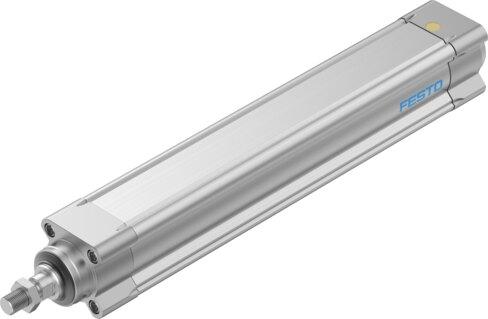

Reference imageConfirm configuration by manufacturer part number.
Festo
8022584
Electric cylinder ESBF-BS-40-400-16P
The Festo 8022584 is an electric cylinder with a ball screw, featuring a size of 40, a working stroke and overall stroke of 400 mm, and an M12x1.25 external thread on the piston rod. Built on the ISO 15552 norm with a plain bearing-guide, it delivers a screw and spindle diameter of 16 mm, a spindle pitch of 16 mm/U, a reversing backlash of 40 µm, a repetition accuracy of ±0.01 mm, and a maximum piston rod angle of rotation of ±0.2 degrees. Operating with either a stepper motor or servo motor, this unit achieves a maximum speed of 1.33 m/s, a maximum rotational speed of 4800 rpm, a maximum acceleration of 25 m/s², and position sensing via a proximity switch in any mounting position. Submit the exact part number, quantity, and application requirements to request a quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8022584
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8022584.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 400 mm
- Size
- 40
- Stroke
- 400 mm
- Piston rod thread
- M12x1.25
- Reversing backlash
- 40 µm
- Screw diameter
- 16 mm
- Spindle pitch
- 16 mm/U
- Max. angle of rotation of the piston rod +/-
- 0.2 deg
- Based on norm
- ISO 15552
- Mounting position
- Any
- Piston rod end
- External thread
- Motor type
- Stepper motor | Servo motor
- Position sensing
- Via proximity switch
- Structural design
- Electric cylinder with ball screw
- Spindle type
- Ball screw
- Protection against torsion/guide
- With plain bearing-guide
- Max. acceleration
- 25 m/s²
- Max. rotational speed
- 4800 rpm
- Max. speed
- 1.33 m/s
- Repetition accuracy
- ±0.01 mm
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- For use in the food industry
- See supplementary material information
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...60 °C
- Max. driving torque
- 7.7 Nm
- Max. radial force on actuator shaft
- 130 N
- Max. feed force Fx
- 3000 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8022584. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
