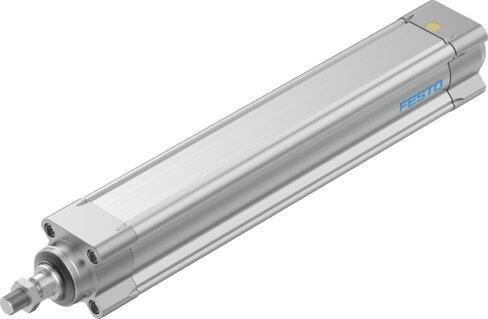

Name: Festo 8022585 Electric cylinder ESBF-...-40- -
Brand: Festo

Electric cylinder ESBF-...-40- -

The Festo 8022585 is an electric cylinder based on the ISO 15552 norm featuring a size 40 designation, adjustable stroke lengths from 30 mm to 800 mm, an M12x1.25 piston rod thread, and a 16 mm screw diameter with a maximum piston rod rotation angle of plus or minus 0.2 degrees. This component integrates a plain bearing-guide for torsion protection, structural designs utilizing ball screws or lead screw spindles, and compatibility with stepper or servo motors operating at a 100% duty cycle with position sensing via proximity switches. Meeting VDMA24364 Zone III LABS conformity with options for corrosion resistance class 2 or 3, the unit achieves ISO 14644-1 Class 7 cleanroom suitability and is appropriate for Li-ion battery production with reduced Cu/Zn/Ni values under specific material exclusion rules. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8022585
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8022585.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Size: 40
Stroke: 30 mm...800 mm
Piston rod thread: M12x1.25
Screw diameter: 16 mm
Max. angle of rotation of the piston rod +/-: 0.2 deg
Based on norm: ISO 15552
Mounting position: Any
Motor type: Stepper motor | Servo motor
Position sensing: Via proximity switch
Structural design: Electric cylinder with ball screw | Electric cylinder with lead screw spindle
Variants: Metals with copper, zinc or nickel by mass as main constituent are | excluded from use. Exceptions are nickel in steel, chemically nickel- | plated surfaces, printed circuit boards, cables, electrical plug connectors | and coils.
Protection against torsion/guide: With plain bearing-guide
Duty cycle: 100%
Corrosion resistance class (CRC): 2 - Moderate corrosion stress | 3 - High corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Suitability for the production of Li-ion batteries: Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14: Class 7 according to ISO 14644-1
Storage temperature: -20 °C...60 °C
For use in the food industry: See supplementary material information
Relative air humidity: 0 - 95%
Degree of protection: IP40 | IP65
Ambient temperature: 0 °C...60 °C
Max. radial force on actuator shaft: 130 N
Max. feed force Fx: 3000 N
No-load driving torque: 0.2 Nm
Type of mounting: With internal thread | or accessories

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8022585. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
