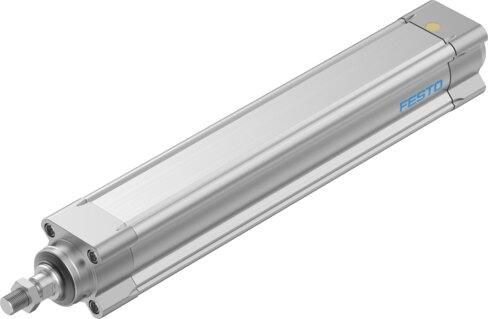

Reference imageConfirm configuration by manufacturer part number.
Festo
8022586
Electric cylinder ESBF-LS-40-100-3P
This Festo electric cylinder with lead screw spindle (Part Number 8022586) features a size 40 designation, a 100 mm working stroke, and an M12x1.25 external thread on the piston rod. Built on the ISO 15552 norm with a plain bearing-guide for torsion protection, the unit operates with a 16 mm screw diameter, a 3 mm/U spindle pitch, and a reversing backlash of 100 µm. It accommodates either a stepper or servo motor to achieve a maximum speed of 0.15 m/s, a maximum rotational speed of 1000 rpm, a maximum acceleration of 2.5 m/s², a piston rod rotation angle of ±0.2 degrees, and a repetition accuracy of ±0.05 mm with position sensing via a proximity switch in any mounting position. Submit the exact part number, quantity, and application requirements to receive a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8022586
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8022586.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Working stroke
- 100 mm
- Size
- 40
- Stroke
- 100 mm
- Piston rod thread
- M12x1.25
- Reversing backlash
- 100 µm
- Screw diameter
- 16 mm
- Spindle pitch
- 3 mm/U
- Max. angle of rotation of the piston rod +/-
- 0.2 deg
- Based on norm
- ISO 15552
- Mounting position
- Any
- Piston rod end
- External thread
- Motor type
- Stepper motor | Servo motor
- Position sensing
- Via proximity switch
- Structural design
- Electric cylinder with lead screw spindle
- Spindle type
- Lead screw
- Protection against torsion/guide
- With plain bearing-guide
- Max. acceleration
- 2.5 m/s²
- Max. rotational speed
- 1000 rpm
- Max. speed
- 0.15 m/s
- Repetition accuracy
- ±0.05 mm
- Duty cycle
- 100%
- Corrosion resistance class (CRC)
- 2 - Moderate corrosion stress
- LABS (PWIS) conformity
- VDMA24364 Zone III
- Storage temperature
- -20 °C...60 °C
- For use in the food industry
- See supplementary material information
- Relative air humidity
- 0 - 95%
- Degree of protection
- IP40
- Ambient temperature
- 0 °C...50 °C
- Max. driving torque
- 2.4 Nm
- Max. radial force on actuator shaft
- 130 N
- Max. feed force Fx
- 1000 N
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8022586. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
