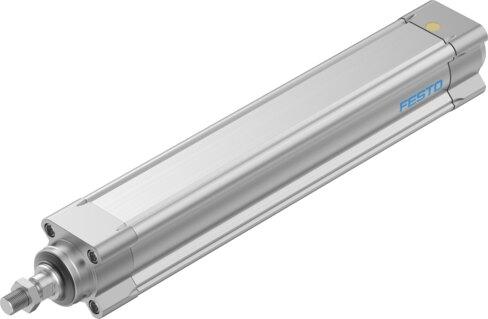

Name: Festo 8022588 Electric cylinder ESBF-LS-40-400-3P
Brand: Festo

Electric cylinder ESBF-LS-40-400-3P

The Festo 8022588 is an ISO 15552-compliant electric cylinder featuring a size 40 structural design with a lead screw spindle, a 400 mm working stroke, and a 16 mm screw diameter with a 3 mm/U spindle pitch. It accommodates stepper or servo motors, incorporates a plain bearing-guide for torsion protection with a maximum piston rod rotation angle of ±0.2 degrees, and delivers a repetition accuracy of ±0.05 mm alongside a reversing backlash of 100 µm. Operating in any mounting position, this unit achieves a maximum speed of 0.15 m/s, a maximum rotational speed of 1000 rpm, and a maximum acceleration of 2.5 m/s² while supporting position sensing via proximity switch and an external M12x1.25 piston rod thread. Submit the exact part number, quantity, and application requirements to receive a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8022588
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8022588.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Working stroke: 400 mm
Size: 40
Stroke: 400 mm
Piston rod thread: M12x1.25
Reversing backlash: 100 µm
Screw diameter: 16 mm
Spindle pitch: 3 mm/U
Max. angle of rotation of the piston rod +/-: 0.2 deg
Based on norm: ISO 15552
Mounting position: Any
Piston rod end: External thread
Motor type: Stepper motor | Servo motor
Position sensing: Via proximity switch
Structural design: Electric cylinder with lead screw spindle
Spindle type: Lead screw
Protection against torsion/guide: With plain bearing-guide
Max. acceleration: 2.5 m/s²
Max. rotational speed: 1000 rpm
Max. speed: 0.15 m/s
Repetition accuracy: ±0.05 mm
Duty cycle: 100%
Corrosion resistance class (CRC): 2 - Moderate corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Storage temperature: -20 °C...60 °C
For use in the food industry: See supplementary material information
Relative air humidity: 0 - 95%
Degree of protection: IP40
Ambient temperature: 0 °C...50 °C
Max. driving torque: 2.4 Nm
Max. radial force on actuator shaft: 130 N
Max. feed force Fx: 1000 N
