Festo
8022779

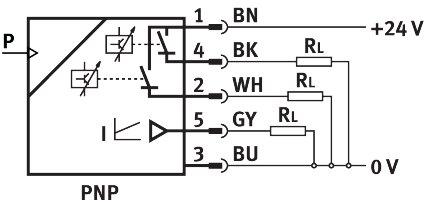

Pressure sensor SPAW-P6R-G14F-2PA-M12
The Festo 8022779 is a piezoresistive pressure sensor designed to measure relative pressure across a range of 0 to 0.6 MPa (0 to 6 bar, 0 to 87 psi) with an overload pressure rating of 1.2 MPa (12 bar, 174 psi). It operates with compressed air as per ISO 8573-1:2010 [-:-:-], liquid media, and gaseous media at temperatures between -20 °C and 85 °C, while maintaining an accuracy of 1 %FS and a repetition accuracy of 0.15 %FS. This component features 2xPNP switching outputs with a max output current of 250 mA, a 4 - 20 mA analog output with a 3 ms rise time, and carries c UL us - Listed (OL) certification alongside RCM, CE, UKCA, and RoHS compliances. Submit the exact part number, quantity, and application requirements to request a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8022779
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8022779.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Relative pressure
- Method of measurement
- Piezoresistive pressure sensor
- Pressure measuring range initial value
- 0 MPa | 0 bar | 0 psi
- Pressure measuring range end value
- 0.6 MPa | 6 bar | 87 psi
- Overload pressure
- 1.2 MPa | 12 bar | 174 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Liquid media | Gaseous media
- Temperature of medium
- -20 °C...85 °C
- Ambient temperature
- 0 °C...80 °C
- Accuracy in ± % FS
- 1 %FS
- Repetition accuracy in ± %FS
- 0.15 %FS
- Switching output
- 2xPNP
- Switching function
- Freely programmable
- Switching element function
- Switchable
- Max. output current
- 250 mA
- Analog output
- 4 - 20 mA
- Rise time
- 3 ms
- Short-circuit protection
- Yes
- DC operating voltage range
- 15 V...35 V
- Reverse polarity protection
- For operating voltage
