Confirm the exact configuration
Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.
Global industrial sourcing · Houston, Texas info@mropartsrfq.com

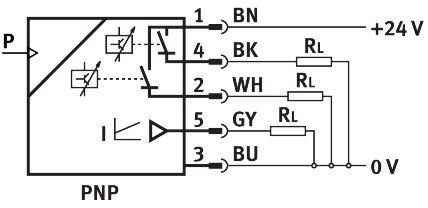

Reference imageConfirm configuration by manufacturer part number.
Festo
8022789
Pressure sensor SPAW-P10R-G12M-2PA-M12
The Festo part number 8022789 is an industrial component featuring a metal thin-film pressure sensor for measuring relative pressure within a 0 to 1 MPa, 0 to 10 bar, or 0 to 145 psi range. It is equipped with two PNP switching outputs, a 4 to 20 mA analog output, and operates with compressed air, liquid media, or gaseous media across a medium temperature range of -20 °C to 85 °C. The unit carries c UL us - Listed (OL) and RCM compliance marks, alongside CE and UKCA markings per EMC and RoHS directives. Submit the exact part number, quantity, and application requirements for a quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8022789
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8022789.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Relative pressure
- Method of measurement
- Metal thin-lm pressure sensor
- Pressure measuring range initial value
- 0 MPa | 0 bar | 0 psi
- Pressure measuring range end value
- 1 MPa | 10 bar | 145 psi
- Overload pressure
- 2 MPa | 20 bar | 290 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Liquid media | Gaseous media
- Temperature of medium
- -20 °C...85 °C
- Ambient temperature
- 0 °C...80 °C
- Accuracy in ± % FS
- 1 %FS
- Repetition accuracy in ± %FS
- 0.15 %FS
- Switching output
- 2xPNP
- Switching function
- Freely programmable
- Switching element function
- Switchable
- Max. output current
- 250 mA
- Analog output
- 4 - 20 mA
- Rise time
- 3 ms
- Short-circuit protection
- Yes
- DC operating voltage range
- 15 V...35 V
- Reverse polarity protection
- For operating voltage
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8022789. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
