Name: Festo 8022791 Pressure sensor SPAW-P25R-G12M-2PA-M12
Brand: Festo

Pressure sensor SPAW-P25R-G12M-2PA-M12

The Festo 8022791 is an industrial component featuring a metal thin-film pressure sensor for measuring relative pressure across a range of 0 to 2.5 MPa, 0 to 25 bar, or 0 to 362.5 psi with an accuracy of 1 %FS and a repetition accuracy of 0.15 %FS. This device accommodates compressed air as per ISO 8573-1:2010 [-:-:-], liquid media, and gaseous media within a medium temperature range of -20 °C to 85 °C and an ambient temperature range of 0 °C to 80 °C, supporting an overload pressure up to 5 MPa, 50 bar, or 725 psi. Configured with 2xPNP freely programmable and switchable switching outputs with a maximum output current of 250 mA alongside a 4 - 20 mA analog output and 3 ms rise time, it carries RCM compliance, c UL us - Listed (OL), CE marking per EU EMC and RoHS directives, and UKCA marking per UK instructions for EMC and RoHS. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8022791
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8022791.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: RCM compliance mark | c UL us - Listed (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Note on materials: RoHS compliant
Measured variable: Relative pressure
Method of measurement: Metal thin-lm pressure sensor
Pressure measuring range initial value: 0 MPa | 0 bar | 0 psi
Pressure measuring range end value: 2.5 MPa | 25 bar | 362.5 psi
Overload pressure: 5 MPa | 50 bar | 725 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [-:-:-] | Liquid media | Gaseous media
Temperature of medium: -20 °C...85 °C
Ambient temperature: 0 °C...80 °C
Accuracy in ± % FS: 1 %FS
Repetition accuracy in ± %FS: 0.15 %FS

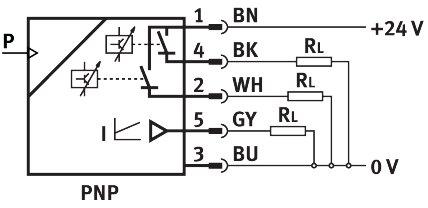

Switching output: 2xPNP
Switching function: Freely programmable
Switching element function: Switchable
Max. output current: 250 mA
Analog output: 4 - 20 mA
Rise time: 3 ms
Short-circuit protection: Yes
DC operating voltage range: 15 V...35 V
Reverse polarity protection: For operating voltage
