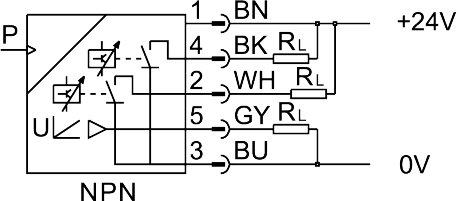

Reference imageConfirm configuration by manufacturer part number.
Festo
8022832
Pressure sensor SPAW-P2R-G14F-2NV-M12
The Festo 8022832 is a piezoresistive pressure sensor engineered to measure relative pressure across a range of 0 to 0.2 MPa (0 to 2 bar, 0 to 29 psi) with an overload pressure threshold of 0.4 MPa (4 bar, 58 psi). This component operates with compressed air conforming to ISO 8573-1:2010 [-:-:-], liquid media, and gaseous media at temperatures between -20 °C and 85 °C, while maintaining an ambient temperature range of 0 °C to 80 °C. It features 2xNPN switching outputs with freely programmable and switchable switching functions, a maximum output current of 250 mA, a 0 - 10 V analog output, a 3 ms rise time, 1 %FS accuracy, and 0.15 %FS repetition accuracy. Certified with RCM compliance, c UL us listing, and CE and UKCA markings per EU and UK EMC and RoHS directives, the device includes RoHS-compliant materials. Submit the exact part number, quantity, and application requirements for a formal quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8022832
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8022832.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Relative pressure
- Method of measurement
- Piezoresistive pressure sensor
- Pressure measuring range initial value
- 0 MPa | 0 bar | 0 psi
- Pressure measuring range end value
- 0.2 MPa | 2 bar | 29 psi
- Overload pressure
- 0.4 MPa | 4 bar | 58 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Liquid media | Gaseous media
- Temperature of medium
- -20 °C...85 °C
- Ambient temperature
- 0 °C...80 °C
- Accuracy in ± % FS
- 1 %FS
- Repetition accuracy in ± %FS
- 0.15 %FS
- Switching output
- 2xNPN
- Switching function
- Freely programmable
- Switching element function
- Switchable
- Max. output current
- 250 mA
- Analog output
- 0 - 10 V
- Rise time
- 3 ms
- Short-circuit protection
- Yes
- DC operating voltage range
- 15 V...35 V
- Reverse polarity protection
- For operating voltage
