Name: Festo 8022834 Pressure sensor SPAW-P10R-G14F-2NV-M12
Brand: Festo

Pressure sensor SPAW-P10R-G14F-2NV-M12

The Festo 8022834 is an industrial component utilizing a metal thin-film pressure sensor to measure relative pressure across a range of 0 to 1 MPa (0 to 10 bar, 0 to 145 psi) with an accuracy of 1 %FS and a repetition accuracy of 0.15 %FS. This device operates with compressed air as per ISO 8573-1:2010 [-:-:-], liquid media, and gaseous media within a medium temperature of -20 °C to 85 °C and an ambient temperature range of 0 °C to 80 °C, featuring 2xNPN switching outputs, a 0 - 10 V analog output, and a maximum output current of 250 mA. It carries RCM compliance, c UL us - Listed (OL) certification, CE marking as per EU EMC and RoHS directives, and UKCA marking to UK instructions for EMC and RoHS, alongside RoHS compliant materials. Submit the exact part number, quantity, and application requirements for a formal quotation.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8022834
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8022834.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Certication: RCM compliance mark | c UL us - Listed (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Note on materials: RoHS compliant
Measured variable: Relative pressure
Method of measurement: Metal thin-lm pressure sensor
Pressure measuring range initial value: 0 MPa | 0 bar | 0 psi
Pressure measuring range end value: 1 MPa | 10 bar | 145 psi
Overload pressure: 2 MPa | 20 bar | 290 psi
Operating medium: Compressed air as per ISO 8573-1:2010 [-:-:-] | Liquid media | Gaseous media
Temperature of medium: -20 °C...85 °C
Ambient temperature: 0 °C...80 °C
Accuracy in ± % FS: 1 %FS
Repetition accuracy in ± %FS: 0.15 %FS

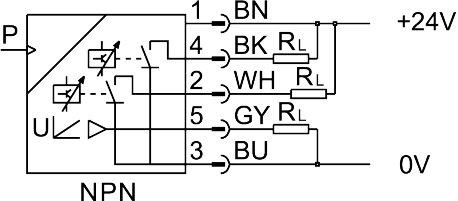

Switching output: 2xNPN
Switching function: Freely programmable
Switching element function: Switchable
Max. output current: 250 mA
Analog output: 0 - 10 V
Rise time: 3 ms
Short-circuit protection: Yes
DC operating voltage range: 15 V...35 V
Reverse polarity protection: For operating voltage

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8022834. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
