Festo
8022838

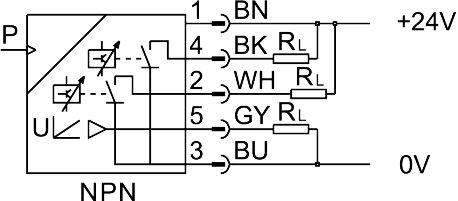

Pressure sensor SPAW-P100R-G14F-2NV-M12
The Festo 8022838 industrial component utilizes a metal thin-film pressure sensor to measure relative pressure across a range of 0 to 10 MPa (0 to 100 bar, 0 to 1450 psi) with an accuracy of 1 %FS and a repetition accuracy of 0.15 %FS. This device operates with compressed air per ISO 8573-1:2010 [-:-:-], liquid media, and gaseous media within a medium temperature of -20 °C to 85 °C and an ambient temperature range of 0 °C to 80 °C, featuring an overload pressure threshold of 20 MPa (200 bar, 2900 psi). Electrical outputs include two freely programmable and switchable NPN switching outputs with a max output current of 250 mA alongside a 0 to 10 V analog output with a 3 ms rise time. Compliance is validated by the RCM mark, c UL us - Listed (OL), CE marking under the EU EMC and RoHS directives, UKCA marking, and RoHS material standards. Submit the exact part number, quantity, and application requirements for an RFQ quote.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8022838
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8022838.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Certication
- RCM compliance mark | c UL us - Listed (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Note on materials
- RoHS compliant
- Measured variable
- Relative pressure
- Method of measurement
- Metal thin-lm pressure sensor
- Pressure measuring range initial value
- 0 MPa | 0 bar | 0 psi
- Pressure measuring range end value
- 10 MPa | 100 bar | 1450 psi
- Overload pressure
- 20 MPa | 200 bar | 2900 psi
- Operating medium
- Compressed air as per ISO 8573-1:2010 [-:-:-] | Liquid media | Gaseous media
- Temperature of medium
- -20 °C...85 °C
- Ambient temperature
- 0 °C...80 °C
- Accuracy in ± % FS
- 1 %FS
- Repetition accuracy in ± %FS
- 0.15 %FS
- Switching output
- 2xNPN
- Switching function
- Freely programmable
- Switching element function
- Switchable
- Max. output current
- 250 mA
- Analog output
- 0 - 10 V
- Rise time
- 3 ms
- Short-circuit protection
- Yes
- DC operating voltage range
- 15 V...35 V
- Reverse polarity protection
- For operating voltage
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8022838. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
