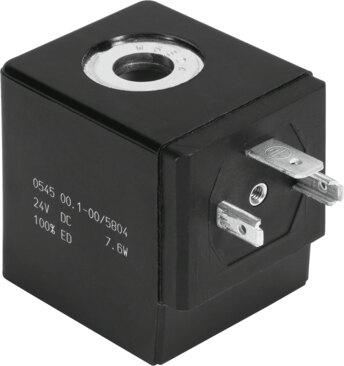

Name: Festo 8022877 Solenoid coil VACN-H1-A1-1
Brand: Festo

Solenoid coil VACN-H1-A1-1

The Festo part number 8022877 is an industrial component featuring a 24 V DC, 11.9 W coil with a power factor cos phi of 0.7, a 100% duty cycle, and a minimum pick-up time of 12 ms. Designed with any mounting position, locknut installation, Type A DIN EN 175301-803 electrical connection, and IP65 degree of protection when mounted, this RoHS-compliant unit is constructed from copper, steel, and thermoplast. It operates under standard ambient temperatures of -20 °C to 50 °C, permits +/- 10% voltage and frequency fluctuations, and provides a corrosion resistance class of 4 alongside VDMA24364 Zone III LABS conformity. Submit the exact part number, quantity, and application requirements for a quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8022877
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8022877.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Mounting position: Any
Switching position indication: No
Min. pick-up time: 12 ms
Duty cycle: 100%
Power factor cos {phi}: 0.7
Coil characteristics: 24 V DC: 11.9 W
Permissible frequency uctuations: +/- 10%
Permissible voltage uctuations: +/- 10%
Restricted ambient and media temperature: (for limited duty cycle) | -20 - 60 °C
Corrosion resistance class (CRC): 4 - Particularly high corrosion stress
LABS (PWIS) conformity: VDMA24364 Zone III
Degree of protection: IP65
Note on degree of protection: In mounted state
Ambient temperature: -20 °C...50 °C
Max. tightening torque of pneumatic tting: 2 Nm
Product weight: 150 g
Electrical connection: Type A | Plug | As per DIN EN 175301-803 | Rectangular design
Type of mounting: With locknut
Note on materials: RoHS compliant
Solenoid coil material: Copper | Steel | Thermoplast
Material of winding: Copper

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8022877. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
