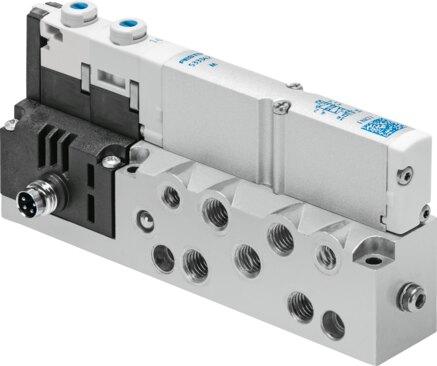

Name: Festo 8023552 Air solenoid valve VMPA14-M1H-D-G1/8-PI
Brand: Festo

Air solenoid valve VMPA14-M1H-D-G1/8-PI

The Festo 8023552 is an electrical piston gate valve featuring a 2x2/2 closed, monostable function with a 14 mm valve size and G1/8 pneumatic working ports. Operating at 24V DC within a 0.3 MPa to 0.8 MPa pressure range, this piloted component delivers a normal nominal flow rate of 570 l/min utilizing internal pilot air supply and an adjustable exhaust air function. Built with a soft sealing principle, pneumatic spring reset, and IP65 degree of protection, it includes both detenting and non-detenting manual override capabilities alongside any mounting position. The unit carries c UL us recognition, CE marking per EU EMC and RoHS directives, and UKCA marking conforming to UK instructions for EMC and RoHS. Submit the exact part number, quantity, and application requirements for a formal quote.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8023552
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8023552.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 2x2/2 closed, monostable
Actuation type: Electrical
Valve size: 14 mm
Normal nominal ow rate (normalized to DIN 1343): 570 l/min
Pneumatic working port: G1/8
Operating voltage: 24V DC
Operating pressure: 0.3 MPa...0.8 MPa | 3 bar...8 bar
Structural design: Piston gate valve
Reset method: Pneumatic spring
Certication: c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Degree of protection: IP65 | As per IEC 60529
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting | Non-detenting
Type of control: Piloted
Pilot air supply port: Internal
Flow direction: Non-reversible
Lap: Positive overlap
Signal status display: Yes
Pilot pressure MPa: 0.3 MPa...0.8 MPa
Pilot pressure: 3 bar...8 bar
Suitability for vacuum: No
Standard nominal ow rate with QS-8: 570 l/min
Switching time oﬀ: 30 ms
On switching time: 12 ms
