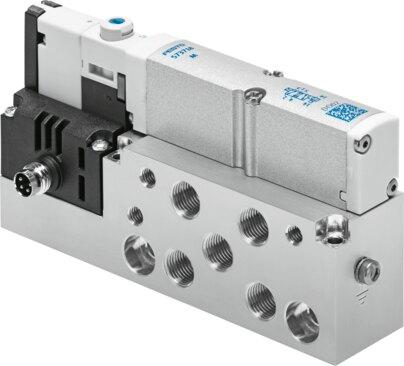

Reference imageConfirm configuration by manufacturer part number.
Festo
8023554
Air solenoid valve VMPA14-M1H-MS-G1/8-PI
The Festo 8023554 is a 5/2-way monostable industrial component featuring electrical actuation, a 14 mm valve size, and a piston gate valve structural design with internal pilot air supply. This unit operates at 24V DC within an operating pressure range of 0.3 MPa to 0.8 MPa (3 bar to 8 bar), delivering a normal nominal flow rate between 550 l/min and 670 l/min through G1/8 pneumatic working ports. It includes an adjustable exhaust air function, mechanical spring reset, soft sealing principle, reversible flow direction, and both detenting and non-detenting manual overrides, while achieving an IP65 degree of protection alongside c UL us recognition, CE marking, and UKCA marking. Submit the exact part number, quantity, and application requirements to request a formal quote for this component.
Request pricing and availabilityCommercial response within one business day for your destination and required quantity.
Request a QuoteWhy no listed price?
Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.
- Manufacturer
- Festo
- Part number
- 8023554
- Data verification
- Manufacturer evidence reviewed
For a faster response, include quantity, condition, and delivery destination.
Exact part-number verificationTechnical properties are matched to 8023554.
Worldwide sourcingSupport for planned and urgent industrial requirements.
Manufacturer documentationA document is added when the reviewed source provides one.
Verified configuration
Technical Specifications
- Valve function
- 5/2-way, monostable
- Actuation type
- Electrical
- Valve size
- 14 mm
- Normal nominal ow rate (normalized to DIN 1343)
- 550 l/min...670 l/min
- Pneumatic working port
- G1/8
- Operating voltage
- 24V DC
- Operating pressure
- 0.3 MPa...0.8 MPa | 3 bar...8 bar
- Structural design
- Piston gate valve
- Reset method
- Mechanical spring
- Certication
- c UL us - recognized (OL)
- CE marking (see declaration of conformity)
- As per EU EMC directive | As per EU RoHS directive
- UKCA marking (see declaration of conformity)
- To UK instructions for EMC | To UK RoHS instructions
- Degree of protection
- IP65 | As per IEC 60529
- Exhaust air function
- Adjustable
- Sealing principle
- Soft
- Mounting position
- Any
- Manual override
- Detenting | Non-detenting
- Type of control
- Piloted
- Pilot air supply port
- Internal
- Flow direction
- Reversible
- Lap
- Positive overlap
- Signal status display
- Yes
- Pilot pressure MPa
- 0.4 MPa...0.8 MPa
- Pilot pressure
- 4 bar...8 bar
- Suitability for vacuum
- Yes
- Note on standard nominal ow rate
- MPA-L: 670 l/min | MPA-S: 550 l/min
- Standard nominal ow rate with QS-8
- 550 l/min...670 l/min
Engineering context
Identification and RFQ Guidance
What to include in your RFQ
Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.
Technical verification
Our sourcing response is prepared against Festo 8023554. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
