8023559

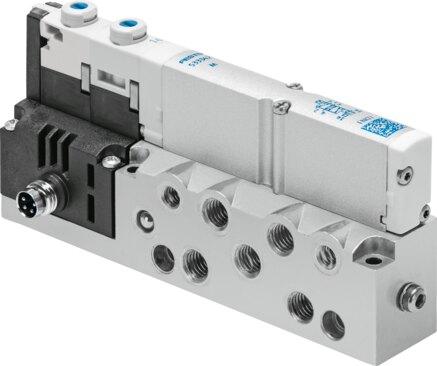

Name: Festo 8023559 Air solenoid valve VMPA14-M1H-J-S-G1/8-PI
Brand: Festo

Air solenoid valve VMPA14-M1H-J-S-G1/8-PI

The Festo 8023559 is a 14 mm electrical 5/2-way bistable industrial component featuring a piston gate valve structural design with a soft sealing principle and positive overlap. Operating at 24V DC within an operating pressure range of -0.09 MPa to 1 MPa, this piloted component delivers a normal nominal flow rate of 590 l/min through G1/8 pneumatic working ports and an external pilot air supply port. It includes an adjustable exhaust air function, reversible flow direction, detenting and non-detenting manual override, and offers IP65 protection in any mounting position alongside c UL us recognition, CE marking, and UKCA marking. Submit the exact part number, quantity, and application requirements to request a formal quote for this item.

Request pricing and availabilityCommercial response within one business day for your destination and required quantity.

Request a Quote

Why no listed price?

Industrial and obsolete parts are priced per enquiry: the final price depends on available stock, condition, quantity, and your delivery destination, so a fixed list price would be misleading. Request a quote and we confirm current pricing, lead time, and sourcing options — including hard-to-find and discontinued Festo references — within one business day.

Manufacturer: Festo
Part number: 8023559
Data verification: Manufacturer evidence reviewed

For a faster response, include quantity, condition, and delivery destination.

Exact part-number verificationTechnical properties are matched to 8023559.

Worldwide sourcingSupport for planned and urgent industrial requirements.

Manufacturer documentationA document is added when the reviewed source provides one.

Verified configuration

Technical Specifications

Valve function: 5/2-way, bistable
Actuation type: Electrical
Valve size: 14 mm
Normal nominal ow rate (normalized to DIN 1343): 590 l/min
Pneumatic working port: G1/8
Operating voltage: 24V DC
Operating pressure: -0.09 MPa...1 MPa | -0.9 bar...10 bar
Structural design: Piston gate valve
Certication: c UL us - recognized (OL)
CE marking (see declaration of conformity): As per EU EMC directive | As per EU RoHS directive
UKCA marking (see declaration of conformity): To UK instructions for EMC | To UK RoHS instructions
Degree of protection: IP65 | As per IEC 60529
Exhaust air function: Adjustable
Sealing principle: Soft
Mounting position: Any
Manual override: Detenting | Non-detenting
Type of control: Piloted
Pilot air supply port: External
Flow direction: Reversible
Lap: Positive overlap
Signal status display: Yes
Pilot pressure MPa: 0.3 MPa...0.8 MPa
Pilot pressure: 3 bar...8 bar
Suitability for vacuum: Yes
Standard nominal ow rate with QS-8: 590 l/min
On switching time: 9 ms
Changeover time: 24 ms
Max. positive test pulse with 0 signal: 400 µs

Engineering context

Identification and RFQ Guidance

Confirm the exact configuration

Use the manufacturer part number and model code—not appearance alone. Connection, size, material, voltage, pressure, seal, and control options can differ within the same product family.

What to include in your RFQ

Provide quantity, delivery country and ZIP/postal code, required condition, target date, and photographs of the existing nameplate when available.

Technical verification

Our sourcing response is prepared against Festo 8023559. Final compatibility remains subject to the machine manufacturer’s requirements and complete application data.
